A pen-type digital multimeter with NCV combines the functionality of a non-contact voltage tester and a compact digital multimeter into a single handheld tool. It allows electricians and maintenance technicians to both measure electrical parameters and detect live AC voltage without direct contact.
This type of multimeter is especially popular for electrical inspection, household wiring checks, and fast troubleshooting, where portability and safety are critical.
What Does NCV Mean in a Digital Multimeter?
Definition of NCV
NCV (Non-Contact Voltage) detection identifies the presence of an AC electric field using a built-in sensing antenna. The user does not need to touch the conductor or expose bare metal.
Typical detection range:
- 12–1000 V AC (model-dependent)
NCV is widely used for:
- Checking live wires in distribution boxes
- Identifying phase (live) wires
- Verifying outlets, switches, and wall wiring
How NCV Alerts the User
Pen-type multimeters usually indicate voltage presence through:
- LED indicators (green / yellow / red)
- Audible buzzer with increasing frequency
- On-screen symbols or bars
Higher field strength usually results in faster beeping or brighter indicators, helping users distinguish live wires quickly.
Typical Functions of a Pen-Type Digital Multimeter
Measurement Capabilities
Most pen-type digital multimeters support:
- AC/DC voltage measurement
- Resistance measurement
- Continuity testing with buzzer
- Diode testing
Some advanced models also include:
- Capacitance
- Frequency and duty cycle
These functions cover the majority of daily electrical inspection and troubleshooting tasks.
Compact, One-Handed Design
Pen-type meters are designed for:
- Single-hand operation
- Pocket or tool-bag portability
- Quick access during inspections

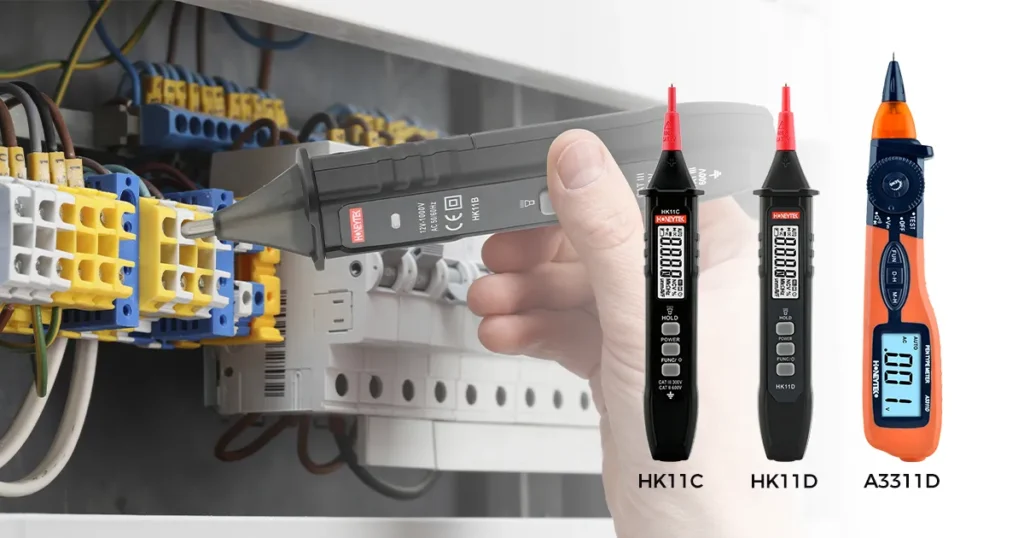

The form factor resembles an enlarged voltage tester pen, with:
- A probe tip at one end
- Display and control buttons along the body
Many models also include:
- Flashlight
- LCD backlight
- Data hold
- Auto power-off
How to Use NCV on a Pen-Type Multimeter (General Steps)
- Switch the meter to NCV mode (via rotary switch or SEL/NCV button).
- Bring the NCV sensing area (usually the insulated tip or marked section) close to:
- Cables
- Outlets
- Switch panels
- Observe the indication:
- No or weak signal: no AC voltage detected or distance too far
- Strong visual/audio alert: live AC voltage present, likely a phase wire
Important Notes
- NCV only detects AC electric fields, not DC voltage
- It does not provide an exact voltage value
- Detection sensitivity may decrease in:
- Metal conduits
- Thick walls
- Shielded cables
For confirmation, NCV should always be combined with direct contact measurement when safety procedures allow.
Buying Guide: Choosing a Pen-Type Multimeter with NCV
If your main use case is electrical inspection or household wiring checks, prioritize the following features:
Essential Features
- NCV detection with sound and visual alarms
- Clear live/neutral wire identification guidance
- Continuity buzzer
Recommended Enhancements
- Auto-ranging operation
- Backlit LCD display
- Built-in flashlight
- Capacitance or frequency measurement
- Compact and durable housing
Frequently Asked Questions (FAQ)
Q1: Is a pen-type NCV multimeter safe for professional use?
Yes, when used within its rated category (typically CAT III 600 V), it is safe for inspections, outlet checks, and control wiring verification.
Q2: Can NCV detect DC voltage?
No. NCV works by sensing AC electric fields and cannot detect DC voltage such as batteries or DC power systems.
Q3: Can a pen-type multimeter replace a full-size multimeter?
For quick checks and inspections, yes. For detailed diagnostics, high current measurement, or precision work, a full-size multimeter or clamp meter is recommended.
Q4: Why does NCV sometimes give false or weak signals?
Metal shielding, cable depth, grounding conditions, and environmental interference can affect sensitivity. Always verify with contact measurement when accuracy is required.
Q5: Who should use a pen-type multimeter with NCV?
Electricians, HVAC technicians, maintenance staff, installers, and homeowners performing basic electrical inspections will benefit most from this tool.
Looking for reliable pen-type digital multimeters with NCV detection?
Honeytek is a professional digital multimeter and clamp meter manufacturer, offering safe, compact, and accurate measurement tools for electrical inspection, industrial maintenance, HVAC service, and field diagnostics.
