Rooftop distributed photovoltaic (PV) systems are growing rapidly worldwide, but their high-voltage DC environments present unique operational challenges. Choosing the right measurement tools is critical for ensuring safety, efficiency, and reliable performance during routine maintenance.
1. Prioritize Safety Ratings
Rooftop PV systems often operate at high DC voltages, up to 1500V or higher. Tools must provide sufficient insulation and protection to prevent arc flash, electric shock, or accidental short circuits. Recommended specifications include:
- CAT III 1000V or CAT IV 1000V–1500V safety rating
- Insulated test leads and clamps designed for high-voltage DC environments
- Compliance with PV-specific fire safety and rapid shutdown standards

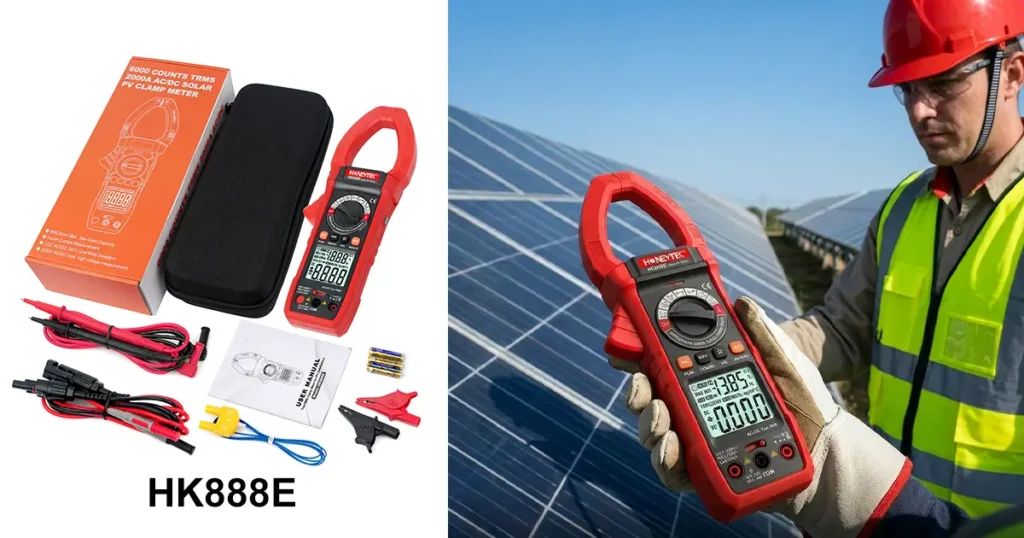

Honeytek’s HK888E Solar PV Clamp Meter is engineered for these conditions, capable of measuring up to 2000V DC and 1500V AC, with environmental sealing, drop-resistant housing, and high-voltage test leads with threaded alligator clips.
2. Monitor and Diagnose Effectively
Early detection of faults is critical. Tools that provide real-time monitoring and diagnostic capabilities help reduce downtime and prevent energy loss. Key features include:
- PV string voltage and current measurement
- Inverter input/output status
- Component-level monitoring
- Historical data logging and remote platform integration
For instance, the HK78BT multimeter offers Bluetooth data transmission and app integration, enabling technicians to record measurements and monitor system health from a smartphone or tablet.
3. Ensure Rooftop Environmental Compatibility
Roof environments expose instruments to high temperatures, sunlight, rain, dust, and corrosion. Selection criteria should include:
- IP-rated waterproofing and dustproofing
- UV-resistant materials for cables and connectors
- Durable housing to withstand mechanical stress
- Weather-resistant components for long-term outdoor use
Honeytek’s instruments are designed with high environmental tolerance, ensuring reliability under harsh rooftop conditions.
4. Maximize Operational Efficiency
Roof maintenance often involves tight spaces and elevated locations, so tools must be:
- Lightweight and portable
- Easy to operate with one hand
- Equipped with clear displays for quick readings
Recommended devices for rooftop PV O&M include: clamp meters, insulation testers, infrared thermometers, string testers, and instruments with data logging capabilities for efficient inspections.
5. Practical Tool Selection Priorities
Essential Features:
- High DC voltage measurement capability
- Current, voltage, and insulation testing
- Safety and environmental protection rating
- Suitability for rooftop outdoor conditions
Recommended Features:
- Data recording and Bluetooth/app integration
- Component- or string-level fault detection
- Lightweight and portable for single-person operation
Honeytek products like the HK78G 2000V TRMS Auto Range Digital Multimeter for PV solar78G support 2000V DC/AC measurement, up to 600A current, and offer capacitor, resistance, frequency, and duty cycle measurement, combined with clear backlit displays and NCV alerts.
FAQ
Q1: What safety standards should rooftop PV measurement tools meet?
A1: CAT III 1000V or CAT IV 1000–1500V ratings are recommended. High-voltage DC protection, insulation, and rapid shutdown compatibility are essential.
Q2: Can these tools record and transmit data remotely?
A2: Yes. Models like the HK78BT support Bluetooth transmission and integration with apps for data logging and remote monitoring.
Q3: How do I choose between clamp meters and multimeters?
A3: Clamp meters are ideal for measuring string currents safely without disconnecting circuits. Multimeters provide comprehensive measurement functions (voltage, resistance, capacitance, frequency) for more detailed diagnostics.
Q4: Are Honeytek instruments suitable for harsh rooftop environments?
A4: Yes. Devices feature waterproof, dustproof, and UV-resistant housings, ensuring reliable operation in outdoor conditions.
Q5: What is the recommended voltage range for rooftop PV O&M?
A5: Tools should handle up to 2000V DC and 1500V AC to accommodate modern rooftop PV installations.
Ensure rooftop PV safety and efficiency with Honeytek’s professional multimeters and clamp meters. We offer OEM/ODM customization and partner with global distributors to provide high-quality, reliable instruments for PV maintenance worldwide.
Contact Honeytek today to explore our solutions and join our global distribution network.
