Solar Power Testing Equipment for PV Installation and Maintenance
PV systems combine high DC voltage, outdoor exposure and long operating hours. Effective installation and maintenance therefore require more than a general-purpose meter. Honeytek offers solar power testing equipment for electrical verification, current measurement, insulation assessment, live-voltage screening and thermal inspection.

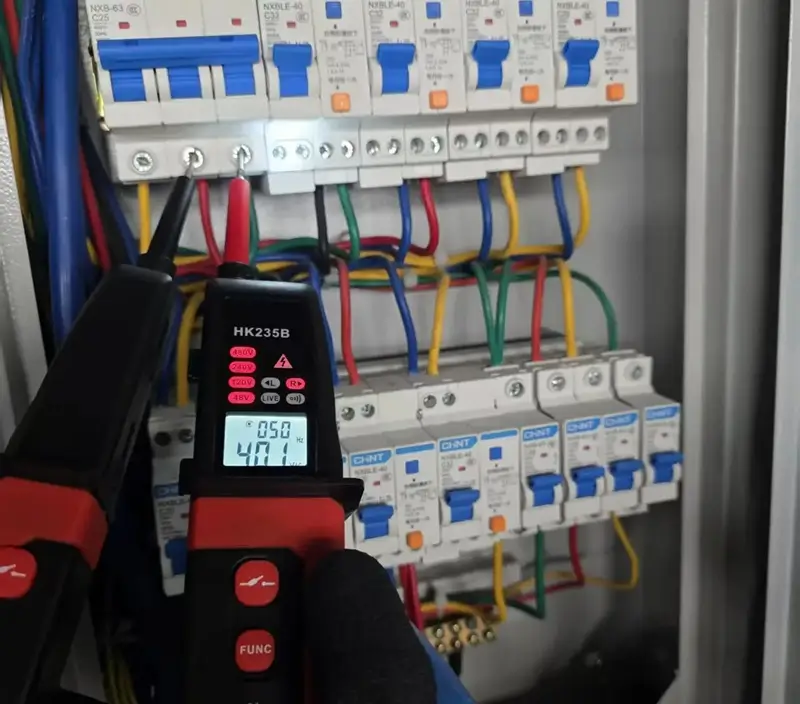

Test the Electrical and Thermal Condition of a PV System
Solar faults can originate in modules, strings, connectors, combiner boxes, cables, protection devices or inverters. A structured inspection should match the instrument to the task:
- Use a suitable Digital Multimeter to verify voltage, resistance, continuity and other required electrical parameters.
- Use Clamp Meters to measure current without opening the conductor, where the conductor arrangement and meter rating allow it.
- Use an Insulation Resistance Tester to assess insulation condition on isolated PV circuits according to the applicable test procedure.
- Use a Voltage Detector as a preliminary live-voltage screening tool; it does not replace a correctly rated contact measurement when absence of voltage must be proven.
- Use Thermal Imagers or an InfraRed Thermometer to identify abnormal temperature patterns that may indicate loose connections, imbalance or stressed components.
Recommended Honeytek Products for Solar and Power Applications
Essential toolkit
Practical testing tools for routine electrical checks and basic solar system maintenance.

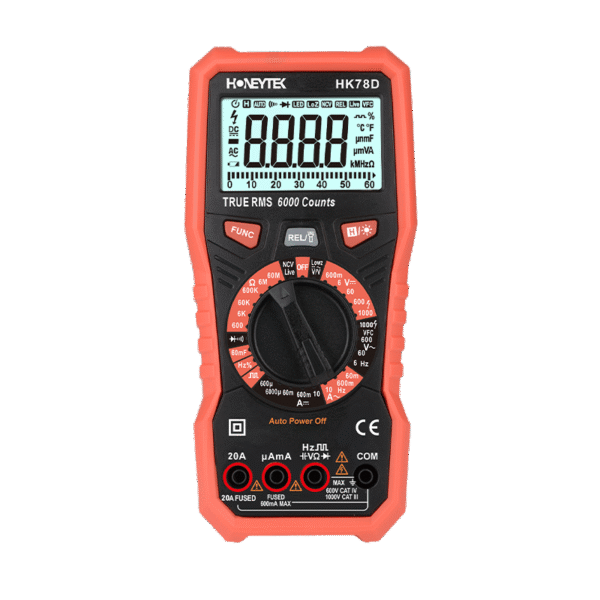

- HK78N, HK78C or HK78D Digital Multimeter for general electrical inspection.
- HK266, HK266C, HK266F or HK266D Clamp Meter for routine current measurement.
- HK505 or HK4432A Insulation Tester for isolated cables and equipment.
- HK11B or HK11B+ Voltage Detector for preliminary live-voltage screening.
Professional toolkit
Versatile instruments for PV commissioning, troubleshooting and preventive maintenance.

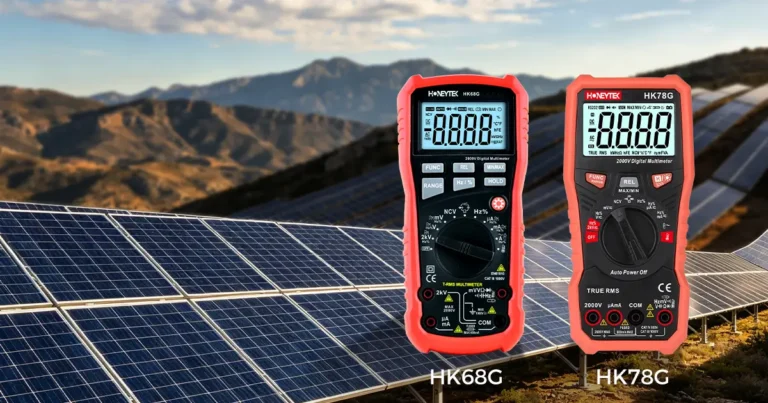

- HK78G 2000V Digital Multimeter for high-voltage PV-related measurements within the instrument rating and approved procedure.
- HK789D, HK688D or HK688B Clamp Meter for broader current-measurement requirements.
- HK4432B Insulation Resistance Tester for professional preventive maintenance.
- TI165, TP170 or TI175 Thermal Imager for temperature-pattern inspection.
Advanced Toolkit
Specialized instruments for demanding high-voltage, high-current and thermal inspection tasks.

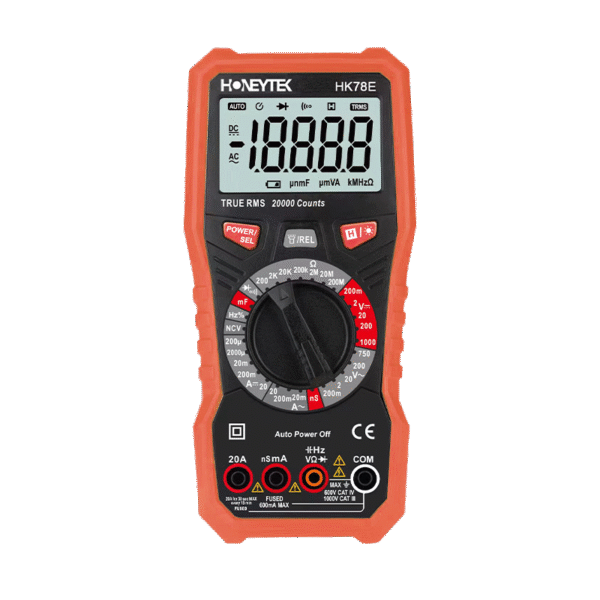

- HK78G, HK78BT or HK78E Digital Multimeter, selected according to required range and measurement function.
- HK689D, HK888D or HK888B Clamp Meter for demanding power and solar applications.
- HK4432C/D Insulation Resistance Tester and HK235A or HK235B Voltage Detector for a more complete professional tool program.
Frequently Asked Questions
The important differences are not the label alone. A meter for PV work must have voltage and current capabilities, input protection, category rating and AC/DC functions suitable for the intended solar circuit.
PV cabling and equipment operate outdoors for long periods. Insulation testing can help identify deterioration, moisture-related leakage or installation damage when performed on an isolated system using the correct procedure.
A Voltage Detector is useful for preliminary screening, but proving absence of voltage normally requires an appropriately rated contact instrument and an approved safe-isolation procedure.
Honeytek supports OEM/ODM evaluation for qualified projects. Options depend on the selected instruments, order quantity, target market, certification and customization scope.
Solar Testing Solutions for Brands and Distributors
Honeytek can help configure a product range for residential PV installers, commercial solar maintenance teams and renewable-energy distributors. OEM/ODM discussions can cover branding, housing, packaging, accessories and other project requirements, depending on product feasibility and compliance needs.
