The Honeytek A6013L is a 2000-count auto-ranging digital capacitance meter designed for measuring capacitors from 200pF to 20mF.
Unlike manually ranged capacitor testers, the A6013L automatically selects the appropriate measurement range. This makes it especially convenient when checking capacitors with unknown or unclear values.
The meter covers small ceramic and film capacitors as well as higher-value electrolytic capacitors. Across its principal ranges, it provides accuracy of up to ±(0.5% + 5 digits).
For practical testing and troubleshooting, the A6013L includes relative measurement, data hold, an LCD backlight and automatic capacitor discharge. Its pocket-size handheld design makes it suitable for electronics repair, PCB maintenance, component inspection, laboratory testing, production control and technical education.
Key Features
Automatic Range Selection
The A6013L automatically selects the appropriate capacitance range, reducing setup time and simplifying the testing of capacitors with unknown values.
Wide 200pF to 20mF Measurement Range
Its multiple measurement ranges cover capacitance values from picofarads to millifarads, supporting a broad selection of ceramic, film and electrolytic capacitors.
2000-Count Digital Display
The 1999-count LCD provides a clear numerical reading for capacitor identification, inspection and comparison.
Up to ±(0.5% + 5 Digits) Accuracy
The principal capacitance ranges provide accuracy of up to ±(0.5% + 5 digits), making the meter suitable for general electronics servicing and component evaluation.
Relative Measurement Mode
Relative mode establishes a reference value and can help compensate for residual test-lead capacitance, particularly when measuring low-value capacitors.
Automatic Capacitor Discharge
The built-in automatic discharge function adds convenience when testing capacitors. For safety, always disconnect and properly discharge a capacitor before connecting it to the meter.
Data Hold
The data-hold function freezes the displayed measurement, making readings easier to record when the display is not directly visible.
Backlit LCD
The integrated LCD backlight improves readability in workshops, electrical cabinets and other low-light working environments.
9V Battery Operation
The A6013L is powered by one standard 6F22 9V battery, making battery replacement simple and convenient.
Technical Specifications
| Specification | A6013L |
|---|---|
| Product type | Auto-ranging digital capacitance meter |
| Display count | 1999 |
| Range selection | Automatic |
| Overall capacitance range | 200pF to 20mF |
| Measurement ranges | 200pF, 2000pF, 20nF, 200nF, 2µF, 20µF, 200µF, 2000µF and 20mF |
| 200pF accuracy | ±(1.0% + 10 digits) |
| 2000pF–200µF accuracy | ±(0.5% + 5 digits) |
| 2000µF accuracy | ±(2.0% + 10 digits) |
| 20mF accuracy | ±(4.0% + 10 digits) |
| LCD backlight | Yes |
| Data hold | Yes |
| Relative measurement mode | Yes |
| Capacitor auto discharge | Yes |
| Auto power-off | Not specified |
| Battery type | 1 × 6F22 9V battery |
| Display size | 40 × 22mm |
| Product dimensions | 140 × 70.6 × 31mm* |
| Product weight | 200g |
| Carton dimensions | 53 × 34 × 47.5cm |
| Quantity per carton | 90 pieces |
| Net/gross carton weight | 24/25kg |
*The supplied comparison image shows the product dimensions as “140 × 70.6 × 31cm.” Because this is described as a pocket meter, the intended unit appears to be millimetres. Confirm the unit against the official A6013L datasheet before publishing.
Capacitance Range and Accuracy
| Capacitance Range | Accuracy |
|---|---|
| 200pF | ±(1.0% + 10 digits) |
| 2000pF | ±(0.5% + 5 digits) |
| 20nF | ±(0.5% + 5 digits) |
| 200nF | ±(0.5% + 5 digits) |
| 2µF | ±(0.5% + 5 digits) |
| 20µF | ±(0.5% + 5 digits) |
| 200µF | ±(0.5% + 5 digits) |
| 2000µF | ±(2.0% + 10 digits) |
| 20mF | ±(4.0% + 10 digits) |
Typical Applications
The Honeytek A6013L can be used for:
- Measuring ceramic, film and electrolytic capacitors
- Identifying capacitors with unreadable or unknown values
- Checking replacement capacitors during electronic repairs
- Comparing and matching capacitor values
- Troubleshooting electronic circuit boards
- PCB assembly and maintenance
- Incoming component inspection
- Production-line quality control
- Electronics laboratories
- Appliance and equipment servicing
- Electronics training and technical education
- Hobby electronics and DIY projects
Why Choose the A6013L?
The A6013L is designed for users who want the convenience of automatic range selection in a dedicated capacitance meter.
Its wide 200pF-to-20mF measurement capability allows technicians to test both low-value capacitors and larger electrolytic capacitors with one instrument. Auto-ranging operation also makes the meter easier to use when the approximate capacitance value is unknown.
The combination of relative mode, data hold, backlight and automatic capacitor discharge makes the A6013L particularly useful for electronics repair benches, inspection stations and educational laboratories.

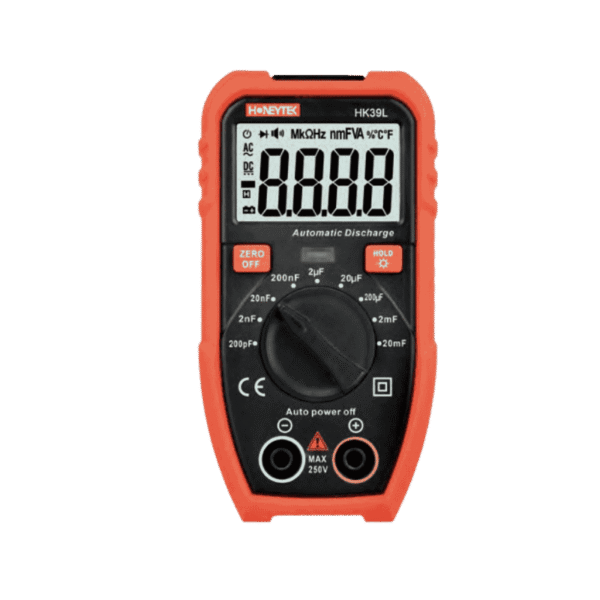

A6013L vs. HK39L
Both the A6013L and HK39L are 2000-count pocket capacitance meters with a maximum measurement range of 20mF. Their main difference is the range-selection method.
| Feature | A6013L | HK39L |
|---|---|---|
| Product type | Auto-ranging capacitance meter | Manual-ranging capacitance meter |
| Overall measurement range | 200pF–20mF | 200pF–20mF |
| Number of ranges | 9 | 9 |
| Range selection | Automatic | Manual |
| Display count | 1999 | 1999 |
| Best principal-range accuracy | ±(0.5% + 5 digits) | ±(0.5% + 5 digits) |
| 200pF accuracy | ±(1.0% + 10 digits) | ±(4.0% + 25 digits) |
| Relative mode | Yes | Yes |
| Data hold | Yes | Yes |
| LCD backlight | Yes | Yes |
| Capacitor auto discharge | Yes | Yes |
| Auto power-off | Not specified | Yes |
| Battery | 1 × 6F22 9V | 2 × 1.5V AAA |
| Display size | 40 × 22mm | 42.5 × 26mm |
| Product dimensions | 140 × 70.6 × 31mm* | 119 × 65 × 30mm |
| Product weight | 200g | 130g |
| Quantity per carton | 90 pieces | 60 pieces |
Choose the A6013L if:
- You prefer automatic range selection.
- You often test capacitors with unknown values.
- You want better specified accuracy on the 200pF range.
- You prefer operation from a standard 9V battery.
- Fast and convenient testing is the priority.
Choose the HK39L if:
- You prefer direct manual control over the selected range.
- You want a smaller and lighter meter.
- You prefer two-AAA battery operation.
- Auto power-off is required.
- Portability is the priority.
Frequently Asked Questions
What does the Honeytek A6013L measure?
The A6013L is a dedicated digital capacitance meter. It measures capacitor values across nine ranges from 200pF to 20mF.
Is the A6013L an auto-ranging capacitance meter?
Yes. The meter automatically selects the appropriate measurement range based on the connected capacitor.
What types of capacitors can it test?
The A6013L can measure ceramic, film and electrolytic capacitors when their values fall within its specified 200pF-to-20mF measurement range.
Can it measure an unknown capacitor?
Yes. Its automatic range selection makes it suitable for identifying capacitors whose approximate values are unknown or whose markings are difficult to read.
Does it have relative measurement mode?
Yes. Relative mode can establish a reference value and help compensate for residual capacitance from test leads during low-capacitance measurements.
What is the difference between the A6013L and HK39L?
The A6013L provides automatic ranging and uses a 9V battery. The HK39L uses manual range selection, is smaller and lighter, and operates on two AAA batteries.
Should a capacitor be discharged before testing?
Yes. Always disconnect the capacitor from its circuit and safely discharge it before measurement. Do not rely only on the meter’s automatic discharge function for electrical safety.
