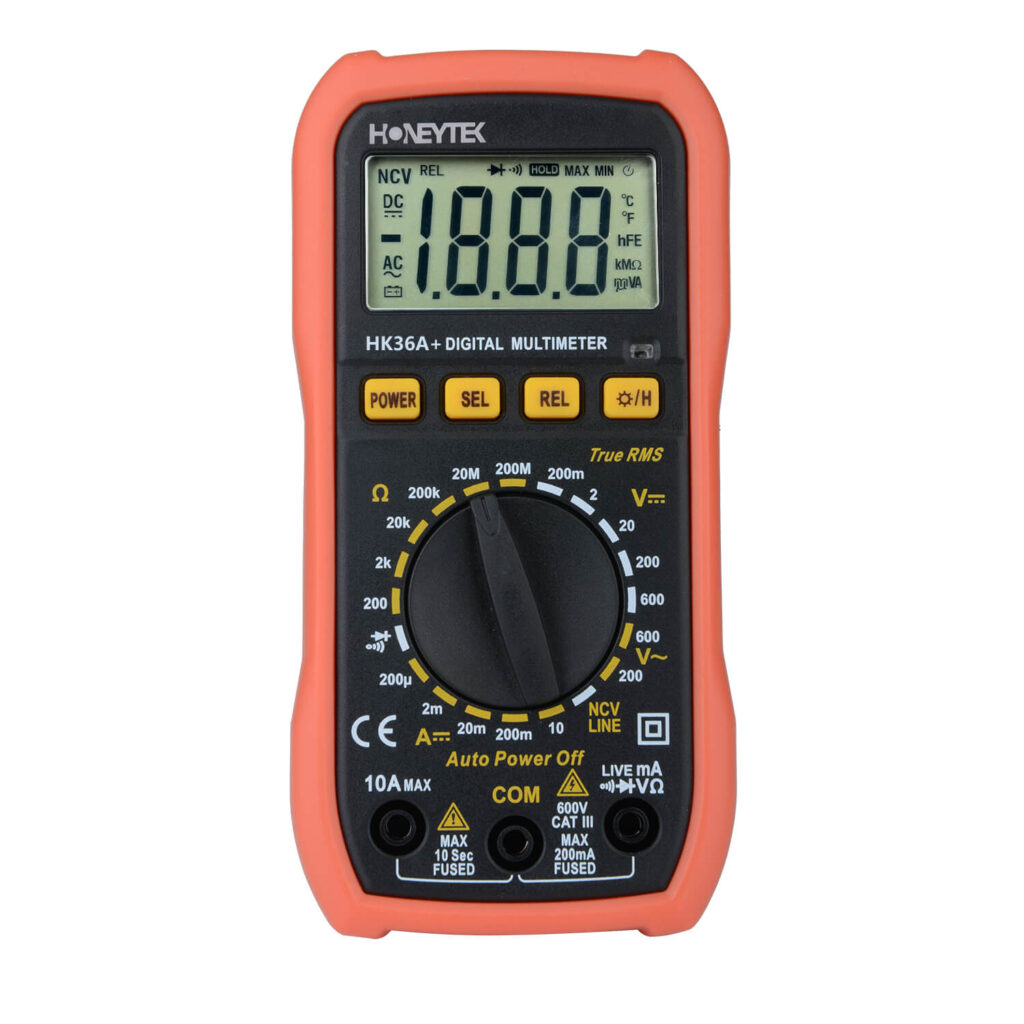

HK36A+ Digital Multimeter
The HK36A+ Digital Multimeter is a compact True RMS tester designed for daily electrical measurement, routine maintenance, and practical field troubleshooting. It offers reliable measurement of DC voltage, AC voltage, DC current, and resistance in a lightweight handheld design that is easy to carry and simple to use.
Built with practical functions such as NCV detection, live wire recognition, continuity buzzer, diode test, flashlight, LCD backlight, data hold, and relative mode, the HK36A+ helps technicians and electricians work more efficiently in both indoor service and general electrical inspection tasks. With manual range selection and a CAT III 600V safety rating, it is a dependable choice for users who prefer direct control and essential testing performance.
Key Features
- True RMS measurement for more reliable readings in real working conditions
- NCV detection for quick non-contact voltage checking
- Live wire recognition for convenient field identification
- Manual range selection for straightforward operation
- 1999-count display with LCD backlight for clear reading
- Built-in flashlight for low-light environments
- Diode test and continuity buzzer for daily troubleshooting
- Data hold and relative mode for easier comparison and recording
- Auto power off for improved battery efficiency
- CAT III 600V safety rating for common electrical applications
Specifications
| Item | Specification |
|---|---|
| DC Voltage | 200mV: ±(0.5% + 2d) 2V: ±(0.5% + 3d) 20V / 200V: ±(0.8% + 3d) 600V: ±(0.8% + 5d) |
| AC Voltage | 200V: ±(1.0% + 5d) 600V: ±(1.2% + 5d) |
| DC Current | 200μA / 2mA / 20mA: ±(1.0% + 5d) 200mA: ±(2.0% + 5d) 10A: ±(3.0% + 5d) |
| Resistance | 200Ω: ±(1.0% + 8d) 2kΩ / 20kΩ / 200kΩ: ±(2.0% + 2d) 20MΩ / 200MΩ: ±(5.0% + 2d) |
| True RMS | Yes |
| Display Count | 1999 |
| Diode Test | Yes |
| Continuity Buzzer | Yes |
| Flashlight | Yes |
| NCV | Yes |
| Live Wire Recognition | Yes |
| LCD Backlight | Yes |
| MAX/MIN | No |
| Data Hold | Yes |
| Relative Mode | Yes |
| Auto Power Off | Yes |
| Range Selection | Manual |
| Safety Rating | CAT III 600V |
| Battery Type | 1.5V AAA × 2 |
| Display Size | 50 × 26mm |
| Product Size | 144 × 70 × 32mm |
| Product Weight | 200g |
Applications
- Household electrical maintenance
- Outlet, switch, and wiring inspection
- Low-voltage DC troubleshooting
- Basic equipment servicing
- Workshop and field repair work
- Continuity and resistance testing in general circuits
FAQ
1. What is the HK36A+ mainly used for?
The HK36A+ is ideal for general electrical testing, household maintenance, wiring checks, and routine troubleshooting.
2. Is the HK36A+ a True RMS multimeter?
Yes. It supports True RMS measurement for more reliable readings on real-world electrical signals.
3. Does the HK36A+ have NCV detection?
Yes. It includes NCV detection for quick non-contact voltage checking.
4. Does it support live wire recognition?
Yes. The HK36A+ includes live wire recognition for easier field identification.
5. Is the HK36A+ auto ranging?
No. It uses manual range selection for direct user control.
6. Can it test continuity and diodes?
Yes. It includes both a continuity buzzer and diode test function.
7. What safety rating does it have?
The HK36A+ is rated CAT III 600V for common electrical testing environments.
