Product Description
The Honeytek T185 Advanced Thermal Camera features 256×192 HD IR resolution and 3.43 mrad spatial accuracy for precision fault detection. Engineered for predictive maintenance, it captures subtle temperature gradients (-20°C~550°C) with 3D thermal mapping, 25Hz imaging, and industrial IP54 durability.
Key Highlights
256×192 HD Resolution: 49,152 pixels for critical detail
Ultra-Clarity Optics: 12μm pixels + 3.43 mrad resolution
Advanced Diagnostics: 3D thermal distribution + fusion imaging
Long Operation: 6h battery + 16GB data storage
Industrial Tough: IP54 & 2m drop-proof
Technical Specifications
| Parameter | T185 Specification |
|---|---|
| IR Resolution | 256×192 |
| Spatial Resolution | 3.43 mrad |
| Temperature Range | -20°C to 550°C (±2°C/±2%) |
| Unique Analysis | 3D thermal visualization |
| Focal Length | 3.5mm (optimized) |
| Weight | 392g (same as T180) |
Application Scenarios
Industrial PM: Motor winding/gearbox failure prediction
Energy Audits: Roof/insulation efficiency quantification
Electronics: Micro-component thermal profiling
Solar Farms: Panel defect localization
Process Engineering: Valve/steam trap inspections

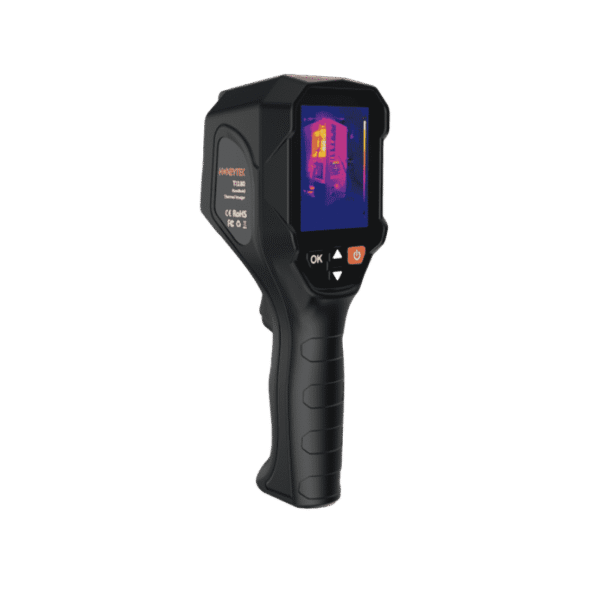

T180 vs T185 Comparison
| Feature | T180 | T185 | Advantage |
|---|---|---|---|
| IR Resolution | 160×120 (19k pixels) | 256×192 (49k pixels) | +156% detail |
| Pixel Size | 17μm | 12μm | Finer thermal sampling |
| Spatial Resolution | 5.31 mrad | 3.43 mrad | 35% sharper imaging |
| Critical Analysis | Standard tools | 3D thermal distribution | Advanced fault diagnosis |
| Best For | Routine inspections | Precision failure analysis | Technical depth |
Shared Features
Range: -20°C to 550°C (±2°C/±2%)
Battery: 3200mAh (≥6h) + USB-C charging
Durability: IP54 + 2m drop resistance
Functions: 3 points/lines/areas, Hi/Lo alarms, 6 color palettes
Compatibility: iOS/Android + 16GB storage
