What is a Clamp Meter?

In the world of electrical diagnostics, safety and accuracy are paramount. For decades, the standard tool for measuring current has been a clamp meter. Unlike a traditional multimeter that requires you to break the circuit to measure current, a clamp meter allows you to simply clamp its jaws around a conductor. This non-contact measurement method is not only faster but also significantly safer. It is an indispensable tool for electricians, HVAC technicians, and field service engineers who need to diagnose, troubleshoot, and perform routine maintenance on a variety of electrical systems.

The evolution of the clamp meter has seen it go from a basic current measurement device to a highly versatile, multi-functional tool. Modern clamp meters often combine the features of a digital multimeter, allowing for measurements of voltage, resistance, capacitance, and more. This consolidation makes them a cornerstone of any professional’s toolkit, providing a powerful, all-in-one solution for complex electrical work.

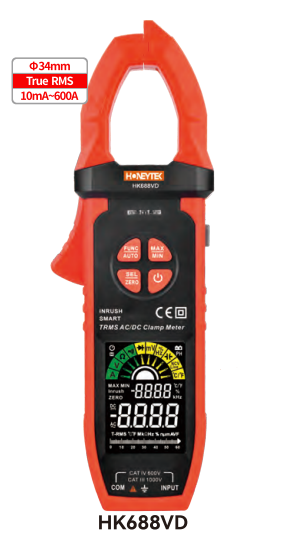

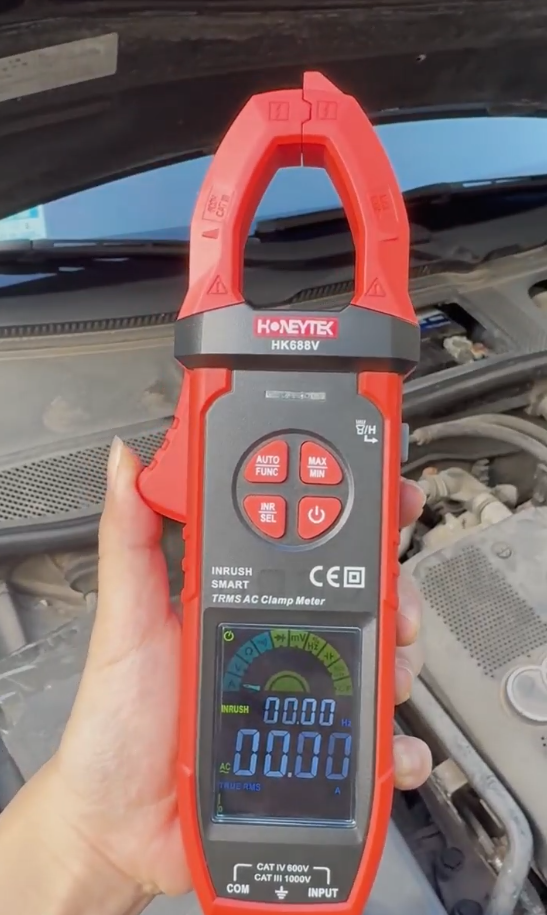

HK688VD: More Than Just a Clamp Meter

Honeytek, a trusted manufacturer of high-quality electronic measurement tools, has raised the bar with its HK688VD model. The HK688VD is not just another clamp meter; it’s a smart, double-molded True RMS device that pushes the boundaries of a standard multimeter. It is designed to empower professionals with unmatched accuracy, safety, and a user experience that redefines efficiency.

The “VD” in its name stands for “Voltage and Display,” and it lives up to that promise. This device is packed with features that make complex diagnostics seem simple, all presented on a clear, graphical LCD screen. It moves beyond simple number readouts to provide a richer, more intuitive understanding of the electrical signals you are measuring.

The Power of True RMS (TRMS)

One of the most significant features of the Honeytek HK688VD is its True RMS capability. Many basic clamp meters measure alternating current (AC) by assuming it’s a perfect sine wave. However, in today’s world of variable speed drives, LED lighting, and switch-mode power supplies, electrical signals are often distorted, or “non-sinusoidal.”

A True RMS clamp meter, like the HK688VD, measures the actual heating power of an AC signal, regardless of its waveform. This provides a far more accurate and reliable reading than conventional meters. For any professional working on modern equipment, having a True RMS clamp meter is no longer a luxury—it’s a necessity for avoiding measurement errors that could lead to faulty diagnoses or safety risks.

A Visual Approach with Graphical Display

The HK688VD’s graphical LCD display is a game-changer. Unlike simple numeric screens, this display provides a visual representation of your measurements. While the specifications table shows a max display of 5999, the graphical display offers a much more nuanced view. This feature allows for a more intuitive understanding of complex data, such as voltage fluctuations or signal variations, which is invaluable for advanced troubleshooting. It’s like having a miniature oscilloscope built into your clamp meter, making it easier to spot trends and anomalies that a simple number might miss.

Automatic and Smart Ranging

Gone are the days of fumbling with a dial to select the correct measurement range. The HK688VD features smart and automatic range selection. This function automatically determines the correct range for the measurement you are performing, saving you time and preventing potential damage to the meter from over-ranging. For a busy electrician on a job site, this seamless, intelligent functionality means one less thing to worry about, allowing for faster and more accurate work.

A Closer Look at the HK688VD’s Features and Specifications

To truly understand the power of this clamp meter, we need to dive into its detailed specifications. The HK688VD is engineered to handle a wide array of electrical measurements with impressive accuracy.

Comprehensive Measurement Capabilities

• DC Voltage (DCV): Measures up to 600V with a high accuracy of ±(0.5% + 5d). This range is perfect for automotive electrical systems, solar panels, and battery diagnostics.
• AC Voltage (ACV): With a range up to 600V and True RMS functionality, the HK688VD ensures precise readings on all types of AC waveforms. The accuracy for ACV is ±(1.0% + 5d), making it reliable for household and commercial power systems.
• AC Current (ACA): The core function of a clamp meter. The HK688VD measures AC current up to 600A, perfect for checking motor loads, current draw from appliances, and electrical panel diagnostics. Its accuracy is ±(2.5% + 10d).
• Resistance: Measures resistance from 600Ω up to 60MΩ. This broad range allows you to check for continuity, wire resistance, and the health of various components.
• Capacitance: Measures capacitance from 10nF to 10mF, which is essential for troubleshooting motor start capacitors, power factor correction circuits, and electronic components.
• Frequency: Measures frequency up to 1MHz, a crucial function for diagnosing issues in power electronics and control circuits.
• Duty Cycle: Provides readings from 0.1% to 99.9%, which is invaluable for understanding pulsed DC signals and motor control.
• Temperature: With a wide temperature range from -40°C to 1000°C (-40°F to 1832°F), the HK688VD can perform thermal diagnostics on electrical components to identify hot spots and potential failures.

Advanced Diagnostic Tools

The HK688VD goes beyond basic measurements with its built-in advanced tools:

• Continuity Buzzer: A fast-response buzzer alerts you to a continuous circuit, making it quick and easy to check fuses, switches, and wiring.
• Diode Test: This function is essential for testing diodes, rectifiers, and other semiconductor components.
• Non-Contact Voltage (NCV) Detection: Safely detect the presence of AC voltage without touching the conductor, a critical safety feature.
• Live Wire Recognition: This feature enhances the NCV function, providing an even clearer indication of a live circuit.
• Data Hold: Freeze the measurement on the screen, allowing you to easily record the reading without the risk of an error.

Designed for Durability and Safety

Honeytek has designed the HK688VD with the professional in mind. The double-molded casing provides a secure grip and excellent durability, protecting the meter from drops and impacts on a demanding job site. More importantly, it is rated at CAT III 1000V / CAT IV 600V. This high safety rating ensures the meter is built to withstand high transient voltages, offering superior protection for the user when working on electrical installations, distribution systems, and utility power.

Why the HK688VD TRMS clamp meter is an Electrician’s Best Friend

The combination of its features makes the HK688VD a tool that not only measures but also helps you think and diagnose problems more effectively.

• Streamlined Workflow: The smart/auto range selection, live wire recognition, and graphical display all contribute to a faster, more efficient workflow. You spend less time fumbling with the tool and more time solving the problem.
• Enhanced Safety: The non-contact AC current measurement, NCV, and high CAT rating prioritize the user’s safety above all else.
• Versatility Across Industries: From automotive and residential wiring to heavy industrial machinery and renewable energy systems, the HK688VD’s comprehensive measurement capabilities make it adaptable to almost any electrical task.

How to Use the Honeytek HK688VD: A Step-by-Step Guide

Using a smart clamp meter is intuitive, but knowing the advanced functions can unlock its full potential.

• Basic Measurement Procedures:
  1. Turn the dial to the desired function (e.g., ACV, DCV, Resistance). The meter will automatically select the correct range.
  2. For voltage or resistance, connect the probes to the circuit.
  3. For AC current, open the clamp jaws and place them around a single conductor. Read the value directly from the display.
• Advanced Functions:
  • True RMS: This is an automatic feature. Simply use the ACV or ACA functions, and the meter’s internal circuitry will provide the accurate RMS value.
  • NCV: Turn the dial to the NCV function. The meter will light up and/or beep when it detects a live voltage source.
  • Data Hold: Press the “Hold” button to freeze the current reading on the screen.

Frequently Asked Questions (FAQs)

Q1: What is the difference between a conventional clamp meter and a True RMS clamp meter? A: A conventional clamp meter is designed to accurately measure pure sine wave AC signals. A True RMS clamp meter, like the HK688VD, measures the true effective value of any AC signal, including distorted or non-sinusoidal waveforms, providing a much more accurate reading for modern electronic equipment.

Q2: Can the HK688VD measure both AC and DC current? A: The HK688VD model measures AC current up to 600A with its clamp jaws. It also measures AC and DC voltage with the test probes. To measure DC current with a clamp meter, you would need a Hall effect clamp meter, which is a different technology. This specific model excels at its core function of AC current measurement.

Q3: What does the CAT III 1000V / CAT IV 600V rating mean? A: This is a crucial safety standard. It means the meter is built to withstand electrical transients and surges up to 1000V in CAT III environments (like motors and distribution panels) and up to 600V in CAT IV environments (like utility-level power and service entrances), protecting the user from harm.

Q4: How does the graphical display help me? A: The graphical display shows a visual representation of your measurement. This is useful for identifying trends, voltage fluctuations, or intermittent faults that a simple numerical readout might not reveal. It provides a more comprehensive view of the electrical signal.

Q5: What is the benefit of the Auto Ranging function? A: Auto ranging automatically selects the correct measurement range for the task. This saves time and prevents you from selecting the wrong range, which can lead to inaccurate readings or even damage to the meter.

Final Verdict: Is the HK688VD TRMS clamp meter the Right Clamp Meter for You?

The Honeytek HK688VD is more than just a measurement tool; it’s an investment in safety, efficiency, and diagnostic power. Its True RMS accuracy, versatile measurement functions, and intelligent features make it an ideal choice for electricians, technicians, and engineers who work with modern electrical systems. For anyone looking to upgrade their toolkit with a reliable, high-performance, and safe clamp meter, the HK688VD stands out as a clear leader.

Ready to Upgrade Your Toolkit?

Equip yourself with a meter that’s built for the future of electrical work. The Honeytek HK688VD clamp meter offers the precision and reliability you need to tackle any challenge.
