Insulation testers are vital instruments for electrical professionals, ensuring that circuits, cables, and equipment are properly insulated for safety and efficiency. Honeytek, a trusted manufacturer of electronic measuring tools, offers reliable and high-precision insulation testers designed for diverse applications. Among their portable lineup, the A4430 and A4431 stand out as two robust models built for professional use.
In this article, we’ll compare the Honeytek A4430 and A4431 in detail, helping you choose the right insulation tester for your projects.
Why Choose Honeytek Insulation Testers?
Honeytek has established itself as a leading brand in electronic measurement tools, known for innovation, safety, and durability. The A4430 and A4431 insulation testers are designed with 2,000-count digital displays, reliable measurement ranges, and CAT II 600V safety ratings. They are particularly suited for:
- Testing insulation resistance in electrical installations
- Diagnosing equipment performance in industrial environments
- Conducting preventive maintenance on cables, motors, and circuits
- Ensuring compliance with safety standards
Overview of A4430 and A4431
Both the A4430 and A4431 are portable insulation testers offering multiple test voltage options (100V, 250V, 500V, 1000V, and 2500V). They share a compact design, user-friendly interface, and accurate measurement capabilities. However, subtle differences make each model better suited for specific scenarios.
Key Similarities:
- Test Voltage Options: 100V, 250V, 500V, 1000V, 2500V
- Load Current: 1mA
- AC Voltage Measurement: up to 750V
- Display Count: 2000 counts, 3 1/2 digit
- Continuity Buzzer: <70Ω ±30Ω beeper
- CAT Rating: CAT II 600V
- Backlight & Auto Power Off: Available on both models
- Operating Temperature: 0°C to 40°C, RH <85%
- Storage Temperature: -10°C to 50°C, RH <75%
- Accessories: Test leads, instruction manual, carrying case (adapter optional)
A4430 Specifications and Features
The Honeytek A4430 is built for reliability and general-purpose insulation testing.
Measurement Ranges and Accuracy
- 100V: 0.01MΩ – 200MΩ (±3% + 5)
- 250V: 200MΩ – 10GΩ (±5% + 5); up to 20GΩ (±10% + 10)
- 500V: 200MΩ – 10GΩ (±5% + 5); up to 20GΩ (±10% + 10)
- 1000V: 200MΩ – 10GΩ (±5% + 5); up to 20GΩ (±10% + 10)
- 2500V: 200MΩ – 10GΩ (±5% + 5); up to 20GΩ (±10% + 10)
Other Highlights
- Weight: 540g
- Range Selection: Auto
- Battery Type: 1.5V (AA) × 8
- Ideal For: General electrical maintenance, on-site insulation resistance testing

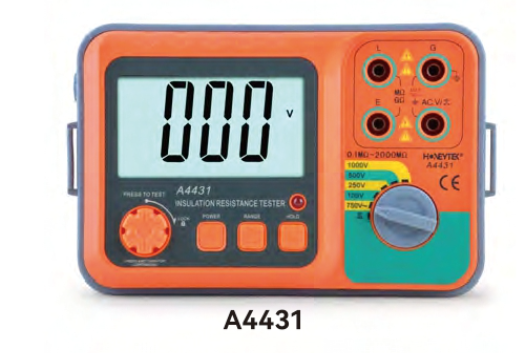

A4431 Specifications and Features
The Honeytek A4431 offers enhanced range and usability, making it ideal for advanced electrical applications.
Measurement Ranges and Accuracy
- 100V: 0.01MΩ – 100MΩ (±3% + 5); 100MΩ – 1000MΩ (±4% + 5); 1000MΩ – 2000MΩ (±5% + 5)
- 250V, 500V, 1000V: Similar stepped ranges up to 2000MΩ with accuracy between ±3% and ±5%
- 2500V: Up to 2000MΩ (±5% + 5)
Other Highlights
- Weight: 520g (slightly lighter than A4430)
- Range Selection: Manual
- Battery Type: 1.5V (AA) × 6
- Ideal For: High-precision insulation measurement where extended range is required
A4430 vs A4431: Side-by-Side Comparison
| Feature | A4430 | A4431 |
|---|---|---|
| Range Selection | Auto | Manual |
| Insulation Resistance | Up to 20GΩ | Up to 2000MΩ |
| Accuracy | ±(3% to 10% depending on range) | ±(3% to 5% depending on range) |
| Weight | 540g | 520g |
| Battery Requirement | 8 × 1.5V AA | 6 × 1.5V AA |
| Best For | General-purpose use | High-accuracy professional use |
Applications of Honeytek A4430 and A4431
Both insulation testers are designed for a wide range of industries and tasks:
- Residential and Commercial Electrical Systems – Check wiring and ensure compliance with insulation safety standards.
- Industrial Equipment Maintenance – Test motors, transformers, and switchgear for insulation degradation.
- Renewable Energy Systems – Monitor insulation resistance in solar PV and wind power installations.
- Utilities and Power Distribution – Diagnose and maintain electrical infrastructure.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between Honeytek A4430 and A4431?
A4430 offers auto range selection and insulation testing up to 20GΩ, while A4431 features manual range selection and more detailed stepped ranges up to 2000MΩ.
Q2: Which model is better for professional electrical testing?
The A4431 is generally better for professionals who require higher precision, while the A4430 is well-suited for general maintenance tasks.
Q3: Can both models measure AC voltage?
Yes, both models can measure AC voltage up to 750V.
Q4: Are these testers suitable for industrial use?
Yes, both models are designed for professional-grade applications in residential, commercial, and industrial environments.
Q5: What kind of batteries do they use?
- A4430: 8 × 1.5V AA batteries
- A4431: 6 × 1.5V AA batteries
Q6: Do they come with a carrying case?
Yes, both models include a carrying case and test leads. An adapter is optional.
Conclusion: Which Honeytek Insulation Tester Should You Choose?
- Choose the A4430 if you need a versatile, easy-to-use insulation tester with auto range selection and extended testing up to 20GΩ.
- Choose the A4431 if you prefer higher accuracy, detailed resistance ranges, and manual range control for more professional-grade applications.
Both models uphold Honeytek’s commitment to safety, precision, and durability, making them excellent choices for electricians, engineers, and maintenance professionals.
Looking for reliable insulation testers? Explore Honeytek’s full range of electronic measuring instruments designed for professionals worldwide.
Contact Honeytek today to request a quote, product demo, or distributor information. Ensure safety and accuracy in every measurement with Honeytek A4430 and A4431 portable insulation testers.
