In the world of electrical testing and measurement, professionals demand precision, safety, and reliability. Honeytek, a trusted electronic measurement tool manufacturer, has developed the HK689 series clamp meters to meet these needs. This guide provides a detailed overview of three models — HK689A, HK689C, and HK689D — highlighting their features, specifications, and applications.
Introduction to the HK689 Series
The HK689 series digital clamp meters are part of Honeytek’s advanced lineup of handheld test instruments. All models come with 6000-count displays, True RMS accuracy, and a rugged double-molded body for durability in demanding environments.
These clamp meters are ideal for industrial power systems, residential maintenance, photovoltaic (solar) installations, and mining operations.
HK689A Clamp Meter
The HK689A is designed for professionals who primarily measure AC current and voltage. It combines accuracy with ease of use, making it a solid choice for routine electrical work.
Key Features of HK689A:
- True RMS measurement
- 6000-count display
- AC current measurement up to 1000A
- AC/DC voltage measurement up to 1000V
- Resistance up to 60MΩ
- Frequency measurement up to 10MHz
- Temperature range up to 1000°C / 1832°F
- Duty cycle: 0.1% – 99.9%
Applications:
- Residential and commercial electrical maintenance
- Industrial AC load monitoring
- Troubleshooting circuits and appliances

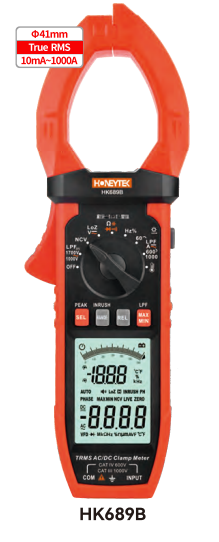

HK689B Clamp Meter
The HK689C is an upgraded model, offering a balance of performance and convenience. While it shares many features with the HK689A, it is designed for technicians needing slightly expanded functionality and flexibility.
Key Features of HK689B:
- True RMS accuracy
- AC current up to 1000A
- AC/DC voltage up to 1700V
- Resistance up to 60MΩ
- Capacitance up to 100mF
- Frequency measurement up to 10MHz
- Temperature range: -40°C to 1000°C / -40°F to 1832°F
- Extra features: NCV detection, live wire recognition, diode test, continuity buzzer, data hold, relative measurement, and peak hold
Applications:
- General industrial electrical maintenance
- Circuit testing and diagnostics
- Capacitance and frequency measurements for more advanced systems
HK689D Clamp Meter
The HK689D is the most advanced of the three, combining all the functions of the HK689A and HK689C while adding DC current measurement, making it suitable for high-demand applications.
Key Features of HK689D:
- True RMS measurement
- AC/DC current measurement up to 1000A
- AC/DC voltage up to 1000V
- Resistance up to 60MΩ
- Capacitance up to 100mF
- Frequency up to 10MHz
- Temperature range: -40°C to 1000°C / -40°F to 1832°F
- Duty cycle measurement: 0.1% – 99.9%
- Extra features: Inrush current, peak hold, NCV detection, live wire recognition, LoZ, VFC, flashlight, and analog bar display
Applications:
- Industrial power systems
- Solar PV installations
- Mining and high-power electrical environments
- Advanced electrical engineering testing
Comparison Table: HK689A vs HK689B vs HK689D
| Feature | HK689A | HK689B | HK689D |
|---|---|---|---|
| True RMS | Yes | Yes | Yes |
| Display Count | 6000 | 6000 | 6000 |
| AC Current | 1000A | 1000A | 1000A |
| DC Current | — | — | 1000A |
| AC/DC Voltage | 1000V | 1700V | 1000V |
| Resistance | 60MΩ | 60MΩ | 60MΩ |
| Capacitance | 100mF | 100mF | 100mF |
| Frequency | 10MHz | 10MHz | 10MHz |
| Temperature Range | 1000°C | 1000°C | 1000°C |
| NCV Detection | — | Yes | Yes |
| Live Wire Recognition | — | Yes | Yes |
| Inrush Current | — | — | Yes |
| VFC / LoZ | — | — | Yes |
| Safety Rating | CAT III 600V | CAT III 600V | CAT III 600V |
Advantages of the HK689 Series
- Versatility: Covers AC, DC, voltage, current, resistance, frequency, capacitance, and temperature.
- True RMS Accuracy: Ensures precise readings in non-sinusoidal waveforms.
- Durability: Double-molded design for rugged field use.
- User-Friendly Features: Dual display, flashlight, backlight, auto/manual range selection.
- Safety: CAT III 600V rating ensures safe operation in residential, commercial, and industrial applications.
Common Applications
- Residential electricians: Troubleshooting household wiring and appliances.
- Industrial technicians: Monitoring motors, panels, and power systems.
- Solar PV installers: Measuring high-voltage DC in photovoltaic systems.
- Field engineers: Advanced electrical diagnostics in demanding environments.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between HK689A, HK689C, and HK689D?
The HK689A is ideal for AC-only measurements, HK689C adds more testing functions such as NCV detection, and HK689D includes full AC/DC measurement capabilities with advanced features like inrush current and VFC.
Q2: Does the HK689D measure DC current?
Yes, the HK689D can measure up to 1000A DC, making it ideal for solar and industrial systems.
Q3: Which model is best for photovoltaic (solar) applications?
The HK689D is best suited due to its DC current and high-voltage measurement capabilities.
Q4: Do all models feature True RMS?
Yes, all three models (HK689A, HK689C, HK689D) provide True RMS accuracy.
Q5: What is the safety rating of these meters?
All three models are rated CAT III 600V, ensuring safe operation in most professional environments.
Q6: Can these meters measure temperature?
Yes, they measure up to 1000°C / 1832°F, suitable for industrial and HVAC applications.
Q7: Do the clamp meters support non-contact voltage (NCV) detection?
HK689C and HK689D include NCV detection, while HK689A does not.
Q8: How durable are these clamp meters?
The rugged double-molded construction ensures durability in field environments.
Why Choose Honeytek?
Honeytek has established itself as a reliable manufacturer of electronic measurement tools, offering innovative designs, accurate performance, and durable instruments trusted worldwide. The HK689 series clamp meters represent Honeytek’s commitment to supporting professionals with tools that enhance accuracy, efficiency, and safety.
Conclusion
The Honeytek HK689A, HK689C, and HK689D clamp meters offer a complete solution for electricians, technicians, and engineers. Whether you need a meter for basic AC measurements, expanded functions, or advanced AC/DC current testing, Honeytek has a model tailored to your needs.
Looking for a professional clamp meter designed to handle your toughest measurement tasks?
👉 Explore the Honeytek HK689 series today and find the perfect model — HK689A, HK689C, or HK689D — for your toolkit.
Contact Honeytek for product inquiries, bulk orders, or distribution opportunities.
