In the field of electrical testing and measurement, accuracy, durability, and ease of use are key. The Honeytek HK689 series clamp meters are engineered to meet the demands of professionals across industries such as industrial power systems, photovoltaics, mining, and electrical engineering. Among them, the HK689D True RMS Clamp Meter stands out as a versatile and high-performance instrument.
Introduction to the HK689 Series
The Honeytek HK689 series includes several models:
- HK689A / HK689C: 1000A AC measurement
- HK689B / HK689D: 1000A AC/DC measurement
These clamp meters are designed with True RMS technology, ensuring precise readings even in environments where waveforms are not purely sinusoidal. The meters feature a 6000-count display for high-resolution measurement and a wide range of professional-grade features.
Key Features of the HK689D Clamp Meter
The HK689D is particularly powerful and versatile, offering:
- True RMS Accuracy: Provides precise readings for both AC and DC currents.
- Measurement Range: Handles up to 1000A AC/DC and 1000V AC/DC.

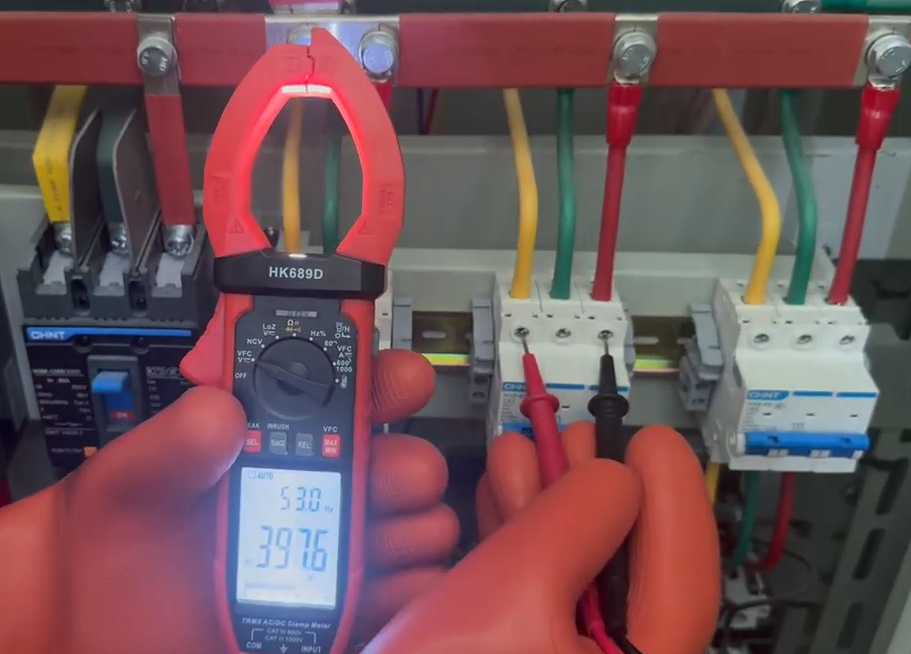

- Dual Display: Simultaneously shows AC voltage/current and frequency, improving efficiency for professionals.
- Wide Voltage Range: HK689B variant can measure AC/DC voltage up to 2000V, suitable for photovoltaic and other high-voltage systems.
- Multiple Testing Functions: Includes peak hold, inrush current, live wire recognition, non-contact voltage (NCV), low impedance (LoZ), low-pass filter (LPF), and variable frequency control (VFC).
- Durability: Double-molded body ensures ruggedness in demanding work environments.
- Convenience: Auto/manual range selection, data hold, relative mode, backlight, and flashlight make field work easier.
Technical Specifications of HK689D
Here is a detailed breakdown of the HK689D’s specifications:
Voltage Measurement
- DC Voltage: Up to 1000V (±0.5% + 3d)
- AC Voltage: Up to 1000V (±0.8% + 5d)
Current Measurement
- AC/DC Current: Up to 1000A (±2.5% + 5d)
Resistance & Continuity
- Resistance: Up to 60MΩ (±2.0% + 5d)
- Continuity Buzzer: Yes
Capacitance
- Up to 60mF (±3.0% + 5d)
Frequency
- Up to 10MHz (±0.1% + 4d)
Temperature
- Range: -40°C to 1000°C / -40°F to 1832°F
Display
- 6000 counts resolution
- Dual display with analog bar

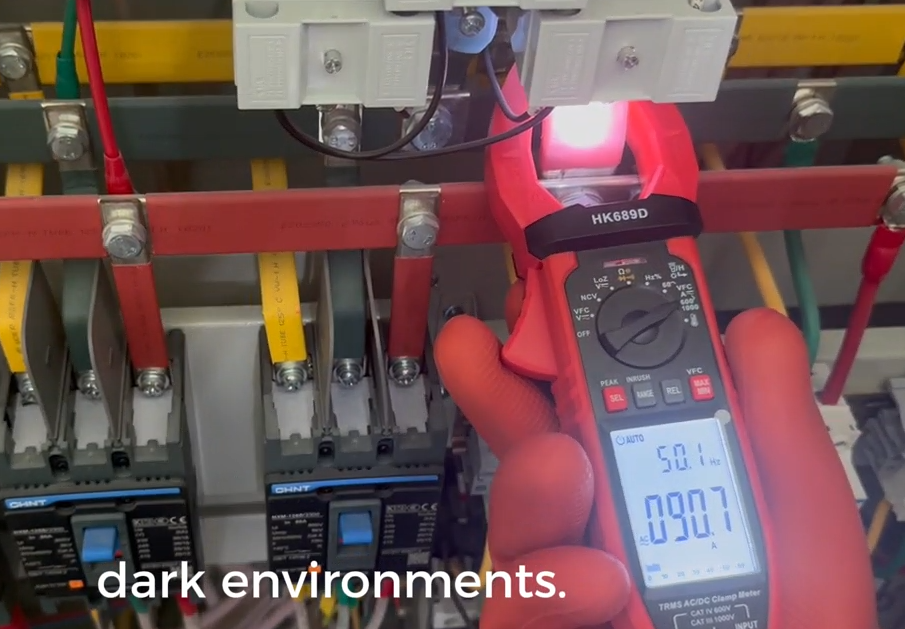

- LCD backlight and flashlight
Additional Features
- Diode Test
- Duty Cycle Measurement
- LoZ AC/DC (1000V)
- Auto Power Off
- Data Hold / Peak Hold
- Inrush Current Detection
General
- CAT III 1000V / CAT IV 600V safety rating
- Power: 1.5V AAA x 3
- Jaw Size: Ø42 x 57.5mm
- Weight: 270g
Advantages of the HK689D Clamp Meter
The HK689D clamp meter is designed to meet the evolving needs of engineers and technicians:
- High Versatility: With the ability to measure AC/DC voltage, current, resistance, capacitance, frequency, and temperature, it consolidates multiple tools into one.
- Enhanced Safety: With CAT III 1000V / CAT IV 600V ratings, it ensures safe operation in both residential and industrial applications.
- User-Friendly Design: Features like flashlight, backlight, auto power-off, and dual display make it highly practical in fieldwork.
- Professional Reliability: Built with a rugged double-molded design for durability in demanding environments.
Applications of HK689D
The HK689D is widely applicable in various professional fields:
- Industrial Power Systems: For accurate measurement of high-voltage and high-current systems.
- Photovoltaic Industry: Ideal for solar PV installations where up to 2000V DC measurement is required (HK689B).
- Mining Operations: Reliable in harsh environments requiring robust and precise measurement tools.
- Electrical Engineering: Useful for maintenance, troubleshooting, and installation.
Comparison: HK689A vs HK689D
| Feature | HK689A | HK689D |
|---|---|---|
| Measurement Type | AC only | AC/DC |
| Max Current | 1000A | 1000A |
| Max Voltage | 1000V | 1000V |
| True RMS | Yes | Yes |
| Display Count | 5999 | 5999 |
| Extra Functions | Standard | Includes Peak Hold, Inrush, LoZ, VFC, etc. |
Frequently Asked Questions (FAQ)
Q1: What makes the HK689D different from other clamp meters?
The HK689D combines True RMS accuracy, dual display, high safety ratings, and multiple advanced features such as inrush current, LoZ, and VFC, making it superior to standard clamp meters.
Q2: Can the HK689D measure DC current as well as AC?
Yes, unlike the HK689A/C models, the HK689D can measure both AC and DC up to 1000A.
Q3: Is the HK689D safe for photovoltaic (solar) applications?
Yes. The HK689B variant can measure up to 2000V DC, making it suitable for high-voltage solar PV systems.
Q4: What is the advantage of True RMS technology?
True RMS ensures accurate readings even when waveforms are distorted or not purely sinusoidal, which is common in modern electrical systems.
Q5: Does the HK689D have non-contact voltage (NCV) detection?
Yes, it includes NCV detection, allowing safe and quick identification of live wires.
Q6: What is the jaw size of the HK689D clamp meter?
The jaw size is Ø42 x 57.5mm, large enough to clamp around thick conductors.
Q7: What type of battery does the HK689D use?
It operates on three 1.5V AAA batteries.
Q8: Is it durable for field use?
Yes, the double-molded body and rugged design make it highly durable for demanding field applications.
Why Choose Honeytek?
Honeytek is a trusted manufacturer of electronic test and measurement tools, known for delivering reliable, accurate, and durable instruments. The HK689 series clamp meters reflect Honeytek’s commitment to innovation and professional-grade performance.
Conclusion
The Honeytek HK689D 6,000 counts True RMS Clamp Meter is a professional-grade instrument designed for precision, durability, and versatility. Whether you are working in industrial systems, solar PV installations, or electrical engineering, the HK689D offers the accuracy and reliability you need.
