Best 2000V Photovoltaic True RMS Clamp Meter

As the global transition toward renewable energy accelerates, photovoltaic (PV) power generation has become a cornerstone of modern energy systems. Large-scale solar farms and distributed rooftop PV installations are expanding rapidly, bringing higher system voltages, larger currents, and more complex operating environments. These conditions place greater demands on testing instruments used by installation and maintenance professionals.

To ensure safe, accurate, and efficient PV system diagnostics, technicians require tools specifically designed for high-voltage DC and AC applications. The HONEYTEK HK888D Digital Clamp Meter is engineered precisely for this purpose, offering high measurement capacity, True RMS accuracy, and enhanced safety ratings tailored to photovoltaic installations.

What Is Photovoltaic Power Generation?

Photovoltaic power generation converts sunlight directly into electrical energy using the photovoltaic effect of semiconductor materials. A typical PV system consists of solar panels, DC combiner boxes, inverters, protection devices, and grid-connection equipment.

Because PV systems operate with high DC voltages, often up to 1500V or more, and are exposed to outdoor conditions such as heat, dust, and humidity, professional-grade measurement instruments are essential for both installation and long-term operation.

Common Challenges in PV System Operation and Maintenance

Although solar power is clean and sustainable, PV systems can encounter several technical issues during operation, including:

DC leakage caused by insulation degradation or environmental factors
Inverter faults leading to reduced energy output
Incorrect wiring or connector failures in combiner boxes
Fuse damage, surge protection failure, or breaker tripping
Unstable grid connection or abnormal frequency readings

These problems can reduce system efficiency, increase maintenance costs, and pose safety risks if not detected early.

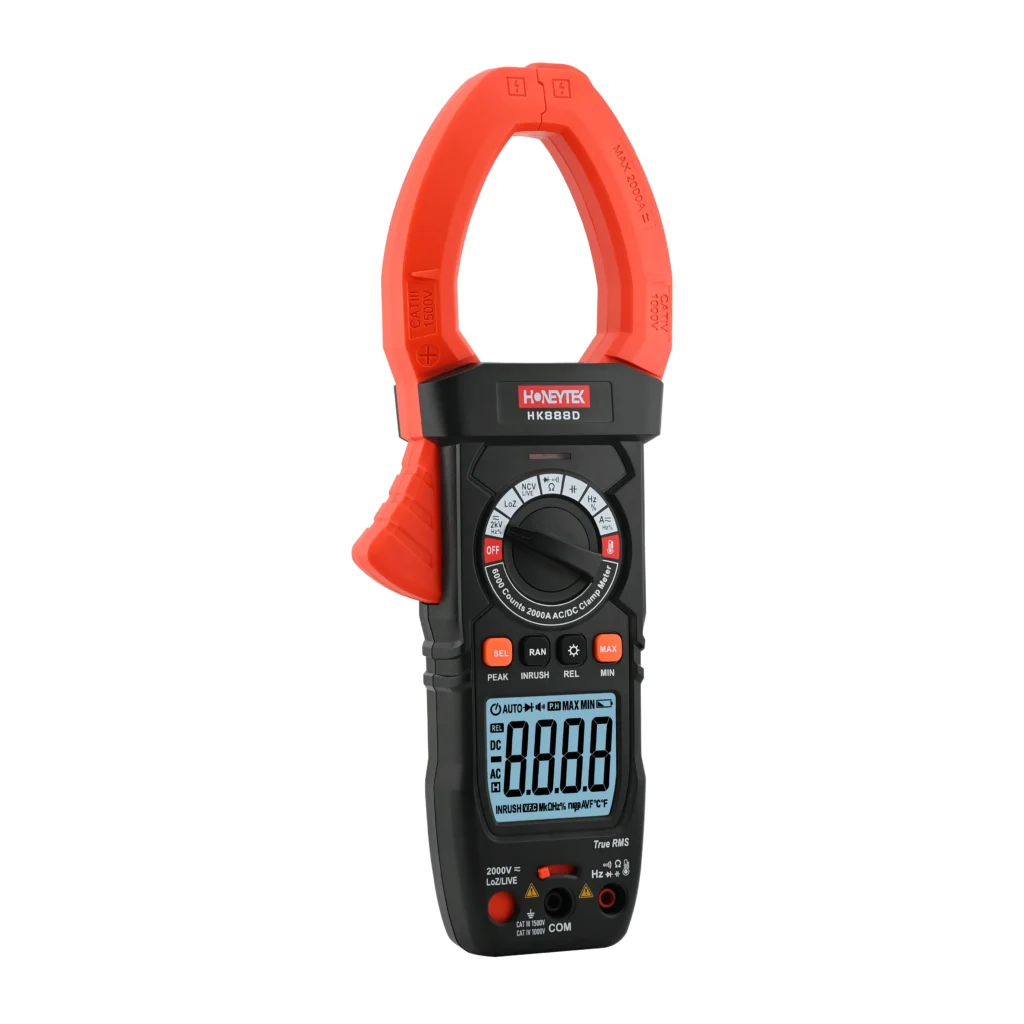

Key Advantages of the HONEYTEK HK888D Digital Clamp Meter

The HONEYTEK HK888D is designed to help technicians identify and resolve PV system issues quickly and safely. Its core advantages include the following.

1. Wide Measurement Range for PV Applications

The HK888D supports a comprehensive range of electrical measurements required in photovoltaic environments:

2000A AC/DC current measurement
2000V AC/DC voltage measurement
6000-count high-resolution display
Resistance up to 60MΩ
Capacitance up to 100mF
Frequency measurement up to 10MHz

This wide measurement capability allows technicians to handle everything from string-level testing to inverter and grid-side diagnostics using a single instrument.

2. True RMS Accuracy and High Safety Rating

Modern PV systems often generate non-sinusoidal waveforms due to inverters and power electronics. The HK888D features True RMS measurement, ensuring accurate readings under real-world conditions.

For safety, the meter is rated:

CAT III 1500V
CAT IV 1000V

These ratings make it suitable for high-energy environments such as PV arrays, distribution panels, and grid-connected systems.

3. Designed for Real-World PV Work Environments

The HK888D is built with features that improve usability in challenging conditions:

Large clamp opening (Ø 57.5 × 74 mm) for easy access to thick PV cables
Double-opening clamp design for faster and more flexible operation
Built-in spotlight for clear visibility in low-light or enclosed spaces
NCV (Non-Contact Voltage) and live wire detection for quick safety checks

These design elements help technicians work more efficiently in tight, dusty, or poorly lit environments.

4. Specialized Functions for Advanced Diagnostics

Beyond basic measurements, the HK888D includes advanced functions essential for photovoltaic testing:

Inrush current measurement to analyze startup behavior
LoZ AC/DC mode to reduce ghost voltage interference
Peak value capture for transient analysis
Temperature measurement for thermal diagnostics

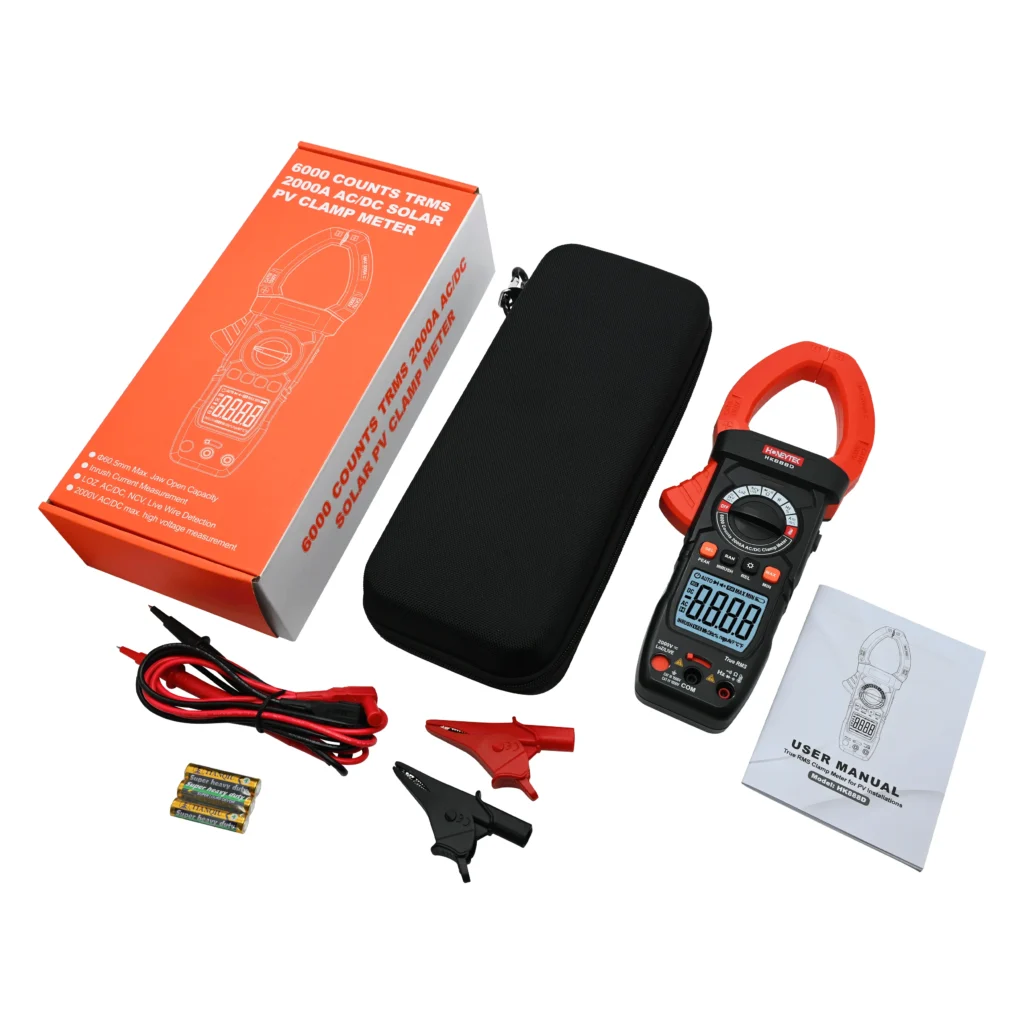

PV test leads with MC4 connectors, specifically designed for solar installations

Together, these features make the HK888D a comprehensive diagnostic tool for both installation and maintenance tasks.

Typical Application Scenarios

In real PV projects, the HONEYTEK HK888D can be used for:

Measuring string and array current without disconnecting cables
Verifying DC voltage levels in combiner boxes
Checking inverter input and output performance
Detecting live wires safely before maintenance
Monitoring frequency and power quality on the grid side

By enabling faster fault detection and safer operation, the HK888D helps reduce downtime and improve overall system reliability.

Conclusion

The HONEYTEK HK888D Digital Clamp Meter combines high voltage and current capability, True RMS accuracy, and professional-grade safety ratings in a single, robust instrument. Designed specifically for photovoltaic installation and maintenance, it addresses the real challenges faced by technicians working in modern PV systems.

For professionals seeking a dependable clamp meter that delivers accuracy, safety, and efficiency in demanding solar environments, the HK888D is a practical and future-ready solution.

Frequently Asked Questions (FAQ)

Q1: Is the HONEYTEK HK888D suitable for 1500V photovoltaic systems?

Yes. The HK888D supports up to 2000V AC/DC and is rated CAT III 1500V, making it suitable for modern high-voltage PV installations.

Q2: Can the HK888D measure DC current without disconnecting cables?

Yes. The clamp design allows non-intrusive AC/DC current measurement up to 2000A, which is ideal for live PV systems.

Q3: Why is True RMS important for photovoltaic testing?

PV inverters often produce non-sinusoidal waveforms. True RMS measurement ensures accurate readings under these conditions, unlike average-responding meters.

Q4: Does the HK888D support solar-specific connectors?

Yes. The meter includes PV test leads with MC4 PV plugs, enabling safe and direct connection to solar equipment.

Q5: What safety features does the HK888D offer?

The HK888D includes CAT III / CAT IV safety ratings, NCV live wire detection, LoZ mode, and a built-in spotlight, all designed to improve operator safety in high-energy environments.
