What is a Mini Compact TRMS Clamp Meter?
A mini compact TRMS clamp meter is a portable electrical measurement tool designed for accurate current and voltage testing in tight spaces. Unlike traditional clamp meters, compact TRMS models combine True RMS technology with a lightweight, handheld design, making them ideal for professionals who require reliable performance in both fieldwork and lab environments.
True RMS ensures accurate readings even with non-sinusoidal waveforms, commonly found in today’s complex electrical and electronic systems. This makes mini compact clamp meters a must-have for electricians, HVAC technicians, automotive engineers, and R&D professionals.
Honeytek HK221 Series Overview
The Honeytek HK221 Series is a family of mini compact TRMS clamp meters built for versatility and professional use. With models ranging from 6,000 counts (HK221B/HK221C) to 4,000 counts (HK221D/HK221F), 2000 counts(HK221A),the series covers both high-resolution measurements and practical everyday functions.
These clamp meters feature:
- True RMS Measurement – Reliable performance for both sinusoidal and non-sinusoidal signals.
- Compact & Lightweight – At just 178×60×32 mm and 165 g, easy to operate with one hand.
- Comprehensive Measurements – AC/DC voltage up to 600V, AC current up to 200A, resistance, capacitance, frequency, and temperature (model-dependent).
- Advanced Safety – CAT III 600V rating ensures safe operation in demanding environments.
- Practical Tools – Continuity buzzer, diode test, data hold, relative mode, and auto power-off.
- Backlit Display (D/F models) – Clear readings even in dim conditions.
Applications of HK221 Series Clamp Meters
The Honeytek HK221 Series is widely used in industries and environments that require accurate, portable current and voltage measurement:
- Automotive industry & 4S shops – Ideal for diagnosing circuits, alternators, and battery systems.
- Power distribution cabinets – Safe measurement of low to medium current in electrical panels.
- Industrial control centers – Monitoring equipment performance and troubleshooting issues.
- Research & development departments – Precision testing for medium current and medium power circuits.
- General fieldwork – Compact design makes it easy to carry and operate in tight spaces.
HK221B/HK221C vs. HK221D/HK221F: What’s the Difference?
🔹 HK221B vs. HK221C
- Temperature Measurement: HK221C supports °C/°F; HK221B does not.
- Capacitance Range: HK221B measures up to 60 mF, while HK221C is limited to 10 mF.
- Frequency Range: HK221B supports up to 10 MHz, HK221C up to 100 kHz.
- Extra Features: HK221C includes Low Impedance (LoZ), Live Wire Recognition, and NCV detection; HK221B lacks these.
🔹 HK221D vs. HK221F
- DC Current Measurement: HK221F supports DC current up to 200A; HK221D does not.
- AC Current Accuracy: HK221D offers ±(2.5% + 10d), HK221F ±(3.5% + 10d).
- Additional Functionality: HK221F supports MAX/MIN recording, making it more advanced for monitoring fluctuations.
🔹 Series Differences (B/C vs. D/F)
- Display Count: B/C models – 6,000 counts; D/F models – 4,000 counts.
- Functionality Focus: B/C models target professional measurements with wider frequency/capacitance ranges, while D/F models emphasize safety and practical functions like NCV and backlight.
- Temperature Measurement: HK221B lacks this feature; all others include it.
Comparison Table: HK221 Series Features
| Feature | HK221B | HK221C | HK221D | HK221F |
|---|---|---|---|---|
| Display Count | 6000 | 6000 | 4000 | 4000 |
| True RMS | ✔ | ✔ | ✔ | ✔ |
| DC Current Measurement | ✘ | ✔ (200A) | ✘ | ✔ (200A) |
| AC Current Measurement | ✔ (200A) | ✔ (200A) | ✔ (200A) | ✔ (200A) |
| Temperature Measurement | ✘ | ✔ | ✔ | ✔ |
| Capacitance Range | 60nF~60mF | 10nF~10mF | 40nF~400μF | 40nF~400μF |
| Frequency Range | 10Hz–10MHz | 10Hz–100kHz | 10Hz–10MHz | 10Hz–10MHz |
| Duty Cycle | ✔ | ✔ | ✘ | ✘ |
| NCV Detection | ✘ | ✔ | ✔ | ✔ |
| Live Wire Recognition | ✘ | ✔ | ✔ | ✔ |
| Backlight | ✘ | ✔ | ✔ | ✔ |
| Data Hold | ✔ | ✔ | ✔ | ✔ |
| Relative Mode | ✔ | ✔ | ✔ | ✔ |
| Auto Power Off | ✔ | ✔ | ✔ | ✔ |
| CAT Safety Rating | CAT III 600V | CAT III 600V | CAT III 600V | CAT III 600V |
| Battery Type | 2×AAA | 2×AAA | 2×AAA | 2×AAA |
| Product Size | 178×60×32 mm | 178×60×32 mm | 178×60×32 mm | 178×60×32 mm |
| Product Weight | 165 g | 165 g | 165 g | 165 g |
Frequently Asked Questions (FAQ)

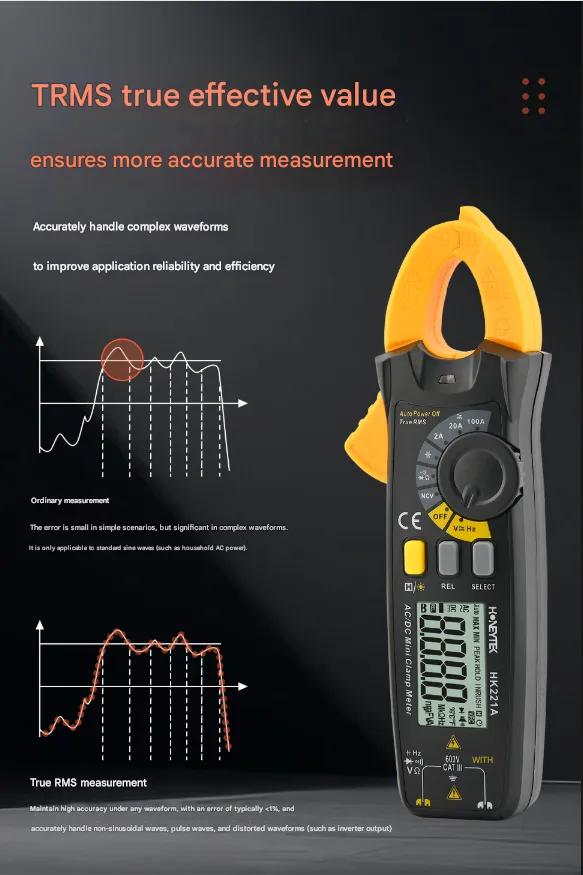

Q1: What does True RMS mean in a clamp meter?
True RMS ensures accurate readings for both pure sine waves and distorted waveforms, common in modern electronics and industrial applications.
Q2: Which model should I choose for automotive applications?
For automotive use, the HK221C or HK221F are recommended as they support both AC/DC current and temperature measurement.
Q3: Can I use these clamp meters for industrial R&D?
Yes, the HK221 Series is ideal for R&D, especially HK221B with its wide frequency and capacitance range.
Q4: What’s the difference between 6,000 counts and 4,000 counts?
Higher counts (6,000) provide finer resolution, while 4,000 counts models prioritize additional functions like NCV and backlight.
Q5: Are these clamp meters safe for panel measurements?
Yes, all models are rated CAT III 600V, making them safe for low to medium voltage distribution panels.
Conclusion
The Honeytek HK221 Series Mini Compact TRMS Clamp Meters strike the perfect balance between portability, accuracy, and functionality. Whether you’re an automotive technician, electrician, industrial engineer, or R&D professional, there’s a model tailored to your needs — from the high-resolution HK221B/HK221C to the feature-rich HK221D/HK221F.
Looking for a reliable and portable measurement solution? Choose Honeytek HK221 Series and bring precision to your work.
