Introduction: Why Circuit Breaker Reliability Testing Matters

In modern power systems, circuit breakers play a critical role as protection devices. Their main function is to quickly isolate faulty circuits and protect downstream equipment during short circuits, grounding faults, or overload conditions.

A circuit breaker must perform two key operations reliably:

• Opening (tripping) – disconnecting the circuit within 5–15 milliseconds after a fault is detected.
• Closing (reclosing) – restoring power within hundreds of milliseconds to a few seconds, to minimize downtime and stabilize the power grid.

Given the importance of these operations, regular testing of circuit breaker operating times and electrical parameters is essential. Without accurate measurements, a delay of just a few milliseconds could lead to equipment damage or widespread outages.

This article explores how Honeytek measurement instruments, particularly clamp meters and multimeters, can be effectively applied in circuit breaker reliability testing.

The Basics of Circuit Breaker Operating Time Testing

Circuit breaker tests usually focus on three main parameters:

1. Trip Command to Current Response Time – how fast the breaker responds to a control signal.
2. Contact Operating Time – the duration for the mechanical contacts to fully open or close.
3. Phase-to-Phase Deviation – any timing mismatch between phases that may cause instability in three-phase systems.

Accurate and efficient measurement of these parameters in the field is crucial. That’s where portable, high-precision instruments like Honeytek clamp meters and digital multimeters provide reliable solutions.

Honeytek Measurement Solutions for Circuit Breaker Testing

1. Honeytek Clamp Meters: Fast and Non-Intrusive Current Testing

Clamp meters are essential for measuring breaker trip currents without disconnecting circuits. Honeytek clamp meters offer:

• True RMS Accuracy – ensuring reliable readings for distorted and non-sinusoidal waveforms.
• AC/DC Current Measurement – essential for capturing breaker response under different fault conditions.
• Compact Design – suitable for tight switchgear panels and on-site testing.
• Safety Compliance – CAT III and CAT IV ratings for substation and industrial environments.

By simply clamping around the conductor, technicians can monitor trip current, inrush current, and load characteristics during breaker operation.

2. Honeytek Digital Multimeters: Precision Voltage and Resistance Testing

Multimeters are vital for control circuit verification and contact resistance measurement. Honeytek multimeters deliver:

• Wide Measurement Range – AC/DC voltage up to 1000V, resistance up to tens of MΩ.
• Continuity & Diode Tests – quick diagnostics of breaker auxiliary circuits.
• High-Resolution Display – ensuring visibility of millisecond-scale changes.
• Durability for Field Use – rugged housings for power station environments.

In reliability testing, multimeters can verify:

• Coil energizing voltage when the breaker receives an open/close command.
• Auxiliary contact behavior to ensure accurate signaling to protection relays.

3. Combining Clamp Meters and Multimeters for Complete Testing

When used together, Honeytek clamp meters and digital multimeters provide a complete field testing solution:

• Clamp meters capture breaker trip and inrush currents in real time.
• Multimeters validate control voltages, resistances, and auxiliary circuits.

This combination enables millisecond-level time correlation between the command signal, current flow, and mechanical contact movement.

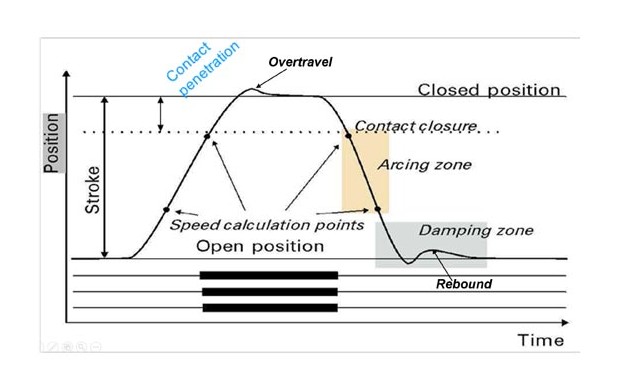

High Voltage Circuit Breaker Typical Motion Trace. Photo: Megger

Applications in the Power Industry

Honeytek measurement tools are widely applicable in:

• Power Plants – ensuring circuit breakers can protect turbines and generators.
• Substations – verifying protective devices for transmission and distribution networks.
• Distribution Panels – testing breakers in industrial control centers.
• Automotive & R&D Labs – evaluating medium-current circuits and fault protection devices.

By using Honeytek clamp meters and multimeters, engineers can achieve both accuracy and portability, which are critical for field diagnostics.

Advantages of Honeytek Instruments in Circuit Breaker Testing

1. High Measurement Accuracy – True RMS ensures correct readings under complex waveforms.
2. Portability & Ease of Use – lightweight design suitable for on-site testing.
3. Safety Standards – CAT III 600V / CAT IV ratings protect users in high-energy environments.
4. Versatility – one tool supports current, voltage, resistance, and continuity checks.
5. Cost-Effectiveness – professional-grade performance at an affordable price point.

Frequently Asked Questions (FAQ)

Q1: Why do circuit breakers need timing tests?
Because even a few milliseconds of delay in tripping could lead to equipment failure or grid instability. Timing tests verify the breaker reacts within safe limits.

Q2: Can Honeytek clamp meters measure both AC and DC current?
Yes, Honeytek clamp meters are designed for AC/DC measurement up to hundreds of amperes, making them ideal for circuit breaker trip current analysis.

Q3: What is the role of a digital multimeter in breaker testing?
Multimeters check coil voltage, contact resistance, and auxiliary circuits, ensuring that both control and protection systems function properly.

Q4: How often should circuit breaker tests be performed?
Typically, during commissioning, after major maintenance, and at scheduled intervals (e.g., every 1–3 years), depending on grid operator standards.

Q5: Are Honeytek instruments safe for substation environments?
Yes, Honeytek clamp meters and multimeters are built with CAT III and CAT IV safety ratings, suitable for power distribution and industrial applications.

Conclusion

Circuit breakers are the first line of defense in power systems. To guarantee stability and safety, their operating reliability must be tested regularly. Honeytek provides effective measurement solutions with its clamp meters and digital multimeters, enabling technicians to accurately measure trip currents, control voltages, and contact behavior in real time.

Whether in power plants, substations, or industrial control centers, Honeytek’s instruments deliver the accuracy, safety, and portability that engineers rely on.
