Introduction: New Testing Standards in the Era of Electrification and Intelligence
The global automotive industry is undergoing a profound transformation.
Electrification, intelligent driving systems, and increasingly compact electronic architectures have significantly raised the requirements for thermal management and fault detection.
From internal combustion engines to electric motors, from battery packs to dense wiring harnesses, temperature anomalies are often the earliest indicators of failure—long before mechanical breakdowns or electrical faults become visible.
In this context, infrared thermal imaging has evolved from a supplementary diagnostic tool into a standard method across automotive R&D, manufacturing, testing, and after-sales maintenance.
As a professional manufacturer of electrical test instruments, Honeytek provides high-performance infrared thermal imaging solutions designed to help automotive engineers and technicians capture every critical degree of change—accurately, safely, and efficiently.
Core Technology: The “Thermal Vision” Behind Early Fault Detection
How Infrared Thermal Imaging Works
All objects above absolute zero emit infrared radiation.
Infrared thermal cameras detect this radiation and convert it into a visual temperature distribution map, allowing users to “see” heat patterns that are invisible to the naked eye.
Unlike contact-based sensors, thermal imaging enables:
- Non-contact measurement
- Real-time monitoring
- Full-area visualization instead of single-point data
This makes it especially valuable in complex automotive systems where disassembly is costly or impractical.
Why Honeytek Thermal Imaging Stands Out
Honeytek designs its infrared instruments with real workshop and production environments in mind:
- High temperature sensitivity – Detects subtle temperature differences caused by early-stage defects
- Fast response imaging – Suitable for dynamic tests and road simulations
- Industrial durability – Resistant to oil contamination, vibration, drops, and confined inspection spaces common in automotive service environments
Five Key Automotive Inspection Scenarios with Honeytek Infrared Solutions
1. Powertrain Systems: Health Checks for Engines and Motors
Typical Inspection Targets
- Cylinder block micro-cracks
- Uneven heat dissipation
- Electric motor overheating
- Lubrication system inefficiencies
Recommended Model
TI185 High-Resolution Handheld Thermal Imager
Application Logic
High-resolution imaging enables technicians to identify localized hotspots within complex mechanical structures, allowing early detection of mechanical fatigue or insulation degradation before catastrophic failure occurs.
2. Braking Systems and Chassis: The First Line of Safety
Typical Inspection Targets
- Temperature imbalance between left and right brake discs
- Sticking brake calipers
- Bearing wear and abnormal friction
Application Logic
By comparing thermal distribution across wheel assemblies after road tests, technicians can immediately assess brake force balance and mechanical drag.
Model Advantage

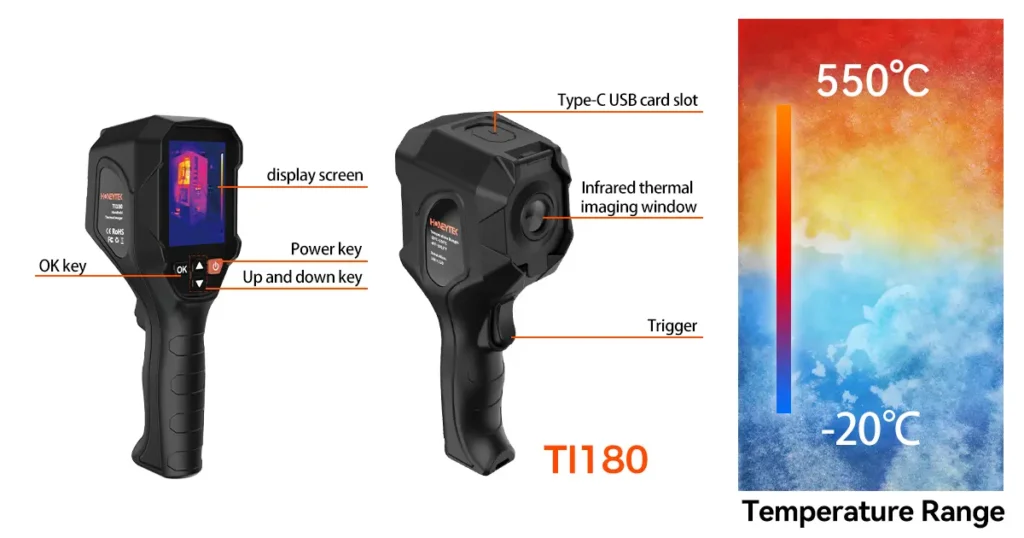

TI180, with its lightweight design, is ideal for fast roadside inspections and routine safety checks.
3. Vehicle Electrical & Interior Comfort Systems
Typical Inspection Targets
- Rear window defroster wire breaks
- Seat heating pad short circuits
- HVAC airflow uniformity
- Cabin air leakage detection via temperature contrast
Application Logic
Thermal imaging visually maps current flow and heat generation in heating elements, eliminating unnecessary disassembly and reducing interior trim damage during diagnostics.
4. Wiring Harnesses and Fuse Boxes: Fire Risk Prevention
Typical Inspection Targets
- Poor electrical contacts
- Fuse overload conditions
- Oxidized connectors
- Abnormal resistance points in dense wiring bundles
Recommended Model
TI175 Industrial-Grade Thermal Imager
Application Logic
In high-density automotive electrical systems, even minor resistance increases can lead to dangerous heat accumulation.
TI175 enables technicians to pinpoint high-risk zones early, significantly reducing fire hazards.
5. Tire Performance Evaluation
Typical Inspection Targets
- Uneven tread heat distribution
- Abnormal wear patterns
- Overheating caused by incorrect tire pressure
Application Logic
Thermal patterns reveal how tires interact with the road surface, providing data-driven insights for performance tuning and safety optimization.
Model Selection Guide: Honeytek Thermal Imaging for Automotive Use
| Model | Core Strengths | Typical Applications |
|---|---|---|
| TI180 | Lightweight, easy operation, high cost-performance | Rapid inspections, used-car evaluation, HVAC checks |
| TI185 | High resolution, superior detail capture | R&D labs, engine diagnostics, EV battery monitoring |
| TI175 | Industrial-grade protection, long-term stability | Heavy-duty vehicles, production lines, harsh environments |
Conclusion: Predict Failures Before They Happen
Infrared thermal imaging is no longer just a troubleshooting tool—it is a predictive safety technology.
By identifying hidden thermal anomalies, automotive professionals can:
- Improve vehicle safety
- Shorten maintenance cycles
- Reduce repair costs
- Prevent catastrophic failures
Looking ahead, Honeytek continues to expand infrared applications into autonomous driving sensor thermal evaluation, power electronics validation, and next-generation battery technologies.
Frequently Asked Questions (FAQ)
Q1: Can infrared thermal imaging detect faults before error codes appear?
Yes. Temperature anomalies often occur long before electronic fault codes or mechanical noise becomes noticeable.
Q2: Is thermal imaging safe for inspecting high-voltage EV systems?
Yes. Infrared inspection is non-contact, making it safer than traditional probing methods when used correctly.
Q3: Can Honeytek thermal imagers be customized for OEM applications?
Absolutely. Honeytek supports OEM/ODM customization, including firmware, branding, and specification adjustments.
Q4: Are Honeytek instruments suitable for production line monitoring?
Yes. Industrial-grade models like TI175 are designed for continuous operation in manufacturing environments.
Honeytek is not only a thermal imaging provider—we are a professional manufacturer of digital multimeters, clamp meters, and advanced electrical test instruments, serving global industrial markets.
- ✔ OEM / ODM customization supported
- ✔ Stable supply chain and engineering support
- ✔ Actively recruiting global distributors and agents
Contact Honeytek today to explore partnership opportunities and customized solutions for the automotive testing industry.
