AC vs DC Leakage Current Measurement: Differences and Safety Notes

Leakage current testing is one of the most practical ways to spot insulation problems, moisture ingress, wiring faults, and aging equipment before failures or nuisance trips occur. However, AC leakage and DC leakage are not interchangeable tests. They differ in waveform behavior, typical fault mechanisms, meter requirements, and even how you clamp the conductors.

This article explains what changes between AC and DC leakage measurements, how to select the correct instrument mode, and what electricians should watch for—especially in solar PV, energy storage, EV, and inverter-based systems.

What “Leakage Current” Means in AC vs DC Systems

In both cases, leakage current is the current that does not return through the intended conductor path and instead finds an unintended path (often to protective earth or chassis).

The reason AC and DC need different approaches is straightforward:

• AC leakage is typically a time-varying residual current influenced by waveform distortion, harmonics, and switching loads.
• DC leakage tends to appear as a steady offset (or slow drift) and is often more sensitive to polarity, temperature, and contamination paths.

Core Differences Between AC and DC Leakage Testing

Measurement principle and clamp meter mode

AC leakage

• Use the clamp meter’s AC current mode (ACA / A~).
• You measure residual (unbalanced) current by clamping live + neutral together (or all phases + neutral).

DC leakage

• Use DC current mode (DCA / A⎓) or a clamp meter specifically designed for DC leakage.
• You measure residual current by clamping positive + negative together on the DC side.

Practical takeaway:
Using the wrong mode (ACA for DC or DCA for AC) can produce incorrect readings—sometimes close to zero when a problem exists.

Common leakage sources and “what the reading looks like”

AC leakage often comes from:

• insulation breakdown or damage
• moisture-related conduction to earth
• capacitive coupling (especially long cable runs)
• EMI filter capacitors in power supplies and drives

Typical behavior: mA-level readings that may fluctuate with load changes, harmonics, and switching.

DC leakage often comes from:

• insulation aging and carbonized tracking
• surface pollution and moisture films
• damaged cable jackets and connector contamination
• PV array insulation issues or battery system leakage paths

Typical behavior: readings appear more stable, but may drift with temperature and can be polarity-sensitive.

How to Clamp Conductors Correctly (AC vs DC)

AC leakage: clamp live + neutral (or all phases + neutral)

• Single-phase: clamp L + N together
• Three-phase: clamp L1 + L2 + L3 + N together (if accessible)

If the system is healthy, the vector sum should be near zero. Any remaining current is the residual/leakage current.

DC leakage: clamp positive + negative together

• On a DC feeder, clamp + and – conductors together so normal load current cancels.
• Any remaining reading indicates leakage/residual current.

Important: In mixed systems (inverters, PV), you may need separate measurements on the DC input side and AC output side.

Range Selection: The Safe Workflow That Works Everywhere

Whether testing AC or DC leakage, the professional workflow is the same:

1. Start on a high current range (A level)
   • Confirms you do not have an unexpected large residual current condition.
2. Step down to mid-range
   • Helps stabilize interpretation on noisy sites.
3. Move to mA range for the real reading
   • Where you can quantify leakage reliably.

Rule of thumb: step down only when the reading is clearly well below the current range limit (conservatively, under ~10% of full scale).

AC Leakage: Practical Notes Electricians Should Know

True RMS matters in modern sites

In environments with:

• VFDs and motor drives
• UPS systems
• switching power supplies
• LED drivers and electronic loads

a True RMS clamp meter improves accuracy because the waveform is frequently non-sinusoidal.

Expect some “normal” capacitive leakage

Long cable runs and EMI filters can create small leakage currents even in healthy systems. This is why the best practice is not to panic over small numbers, but to:

• compare circuits against each other
• trend readings over time
• correlate with insulation test results when appropriate

When readings fluctuate

If leakage readings are jumpy:

• take multiple measurements and use an average
• use MIN/MAX capture when available
• measure during stable operating conditions (avoid startup events)

DC Leakage: Practical Notes for PV, ESS, EV, and DC Buses

Polarity awareness is not optional

DC leakage measurements can be polarity-sensitive:

• some meters display +/– direction
• conductor orientation through the jaw can affect sign

Be consistent in how you clamp conductors so readings remain comparable across circuits and over time.

PV and battery systems can behave differently across operating states

• PV array leakage can vary with irradiance and operating point
• battery/ESS leakage can change with temperature, humidity, and insulation condition

Best practice is to test under:

• stable load conditions
• consistent system state (as close as practical)
• and repeat tests to confirm trends

Your clamp meter must actually support DC current properly

An AC-only clamp meter cannot measure DC leakage accurately. For DC leakage you need:

• a clamp meter with DCA capability
• and preferably stable zeroing/compensation to handle small DC readings

Mixed Systems: Inverters Are the Common Source of Confusion

In PV inverters, UPS systems, and many industrial drive setups, you have both domains:

• DC side: PV strings/combiner, inverter input, battery bus
  • clamp + and –, measure DCA residual
• AC side: inverter output, grid-tie point, building distribution
  • clamp phase(s) + neutral, measure ACA residual

Best practice: evaluate AC leakage and DC leakage separately, then interpret together as part of system health assessment.

Safety Checklist Before You Measure Leakage

Leakage tests are often performed on energized systems. Keep the basics disciplined:

• Start on a high range first to avoid overload surprises
• Wear appropriate PPE and keep stable footing on insulated surfaces
• Be aware of stored energy in DC systems (capacitors, batteries)
• Confirm proper discharge procedures when required by site rules
• Do not let speed override safe conductor access and secure clamping

Summary

• AC leakage: use ACA, clamp L + N (or L1+L2+L3+N), expect fluctuation, True RMS helps in distorted waveforms.
• DC leakage: use DCA, clamp + and –, readings are often steadier but polarity and operating state matter.
• For both: start high, step down to mA, and apply consistent clamping technique for comparable results.

If your work involves PV sites, energy storage, EV infrastructure, industrial drives, or facility maintenance, choosing a clamp meter that can handle True RMS AC leakage and stable DC leakage measurement can reduce misdiagnosis and speed up troubleshooting.

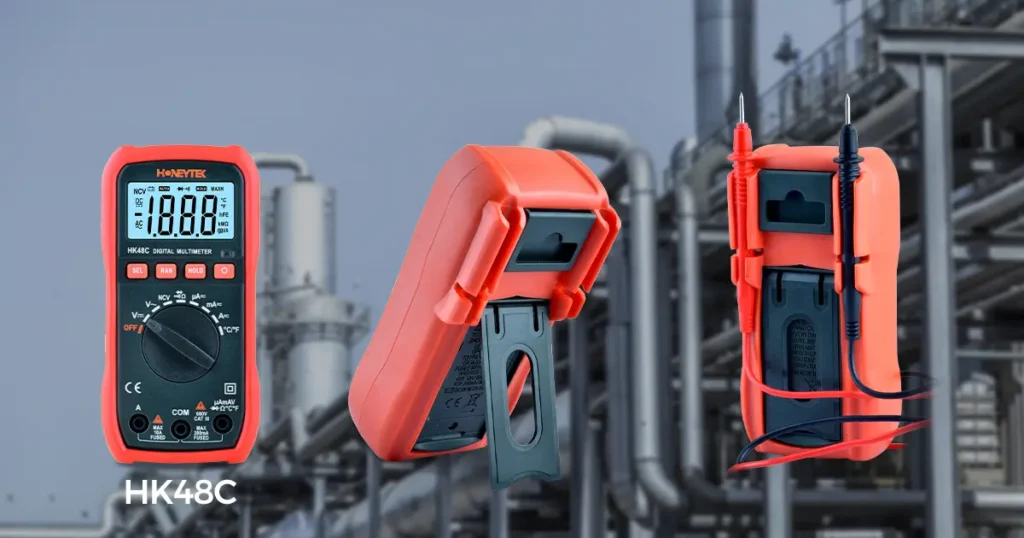

Honeytek manufactures digital clamp meters and digital multimeters for professional use and supports OEM/ODM customization (branding, packaging, and feature configurations) for distributors and tool brands.
