When planning electrical work—whether for commercial buildings, industrial facilities, or modern energy systems—measurement accuracy and application suitability are critical. Using the right clamp meter not only improves efficiency, but also ensures safety for technicians, equipment, and electrical infrastructure.
One of the most common questions electricians and engineers face today is:
Should I use an AC-only clamp meter, or an AC/DC (AC+DC) clamp meter?
The answer depends largely on whether your system includes DC circuits, distorted waveforms, and higher accuracy requirements.
AC-Only Clamp Meters: Where They Make Sense
Traditional AC Power Distribution and Building Electrical Systems
AC-only clamp meters are well suited for standard 50/60 Hz power systems, such as:
- Distribution boards and switch cabinets
- Circuit breakers, feeders, and branch circuits
- Elevators, lighting systems, and building power loads
They are widely used by residential electricians, facility maintenance teams, and commercial property managers to identify overloads, phase imbalance, or abnormal current levels.
Maintenance of Pure AC Loads
For equipment powered directly by the grid:
- Conventional induction motors
- Fans, pumps, compressors
- Non-inverter HVAC systems
AC-only clamp meters provide reliable current readings when the waveform remains close to a sine wave and DC components are not present.
Cost-Effective, Simple Measurements
In many applications, users only need to know:
- Is current present?
- Is the load within the rated range?
- Is there an overload condition?
For these scenarios, AC-only clamp meters offer:
- Simple operation
- Lower cost
- Robust and reliable performance
In short: AC-only clamp meters are ideal for traditional power distribution, building maintenance, and general-purpose electrical work where DC measurement is not required.

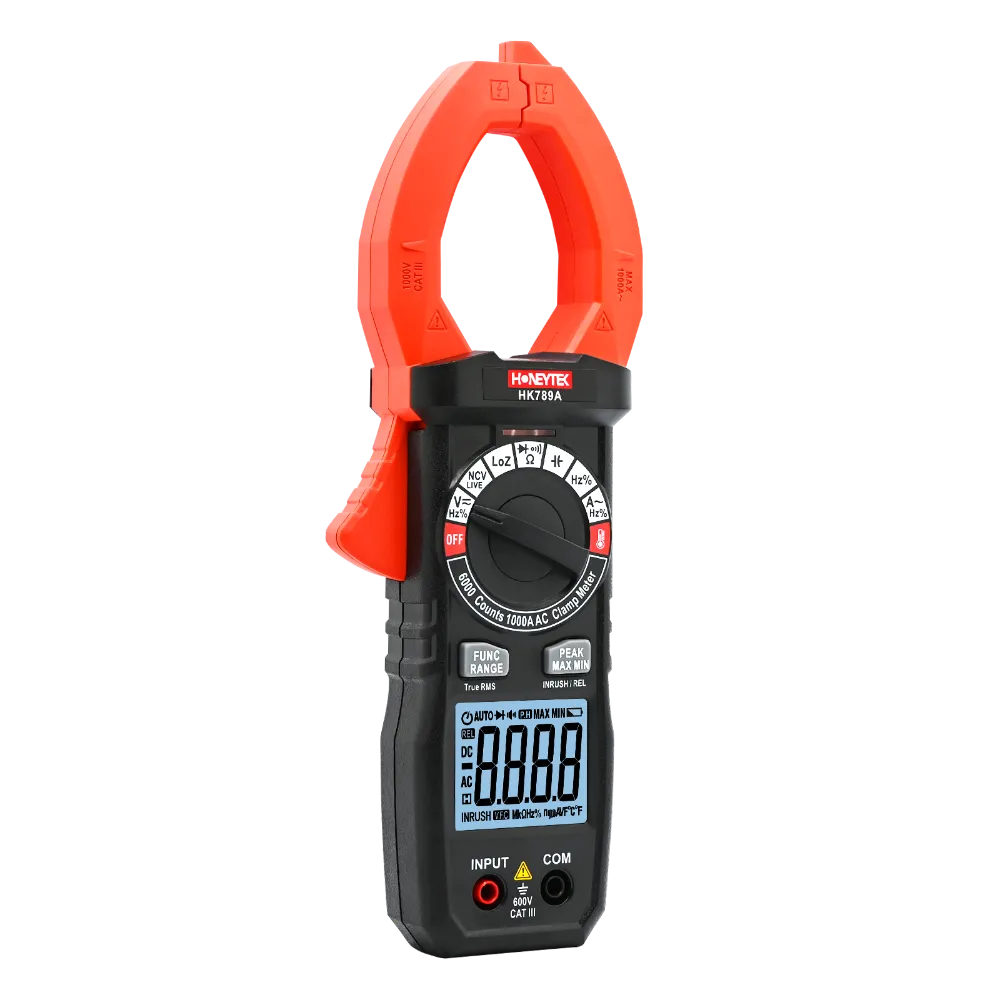

Recommended Model: Honeytek HK789A
The HK789A is a typical AC-optimized clamp meter designed for everyday electrical tasks:
- AC current measurement up to 1000 A
- True RMS for improved accuracy
- NCV detection and inrush current capture
- CAT III 600 V safety rating
It is a practical choice for electricians who work primarily with conventional AC systems.
AC/DC (AC+DC) Clamp Meters: Designed for Modern Electrical Systems
Solar PV and Energy Storage Applications
Modern energy systems increasingly rely on DC power. In applications such as:
- Photovoltaic string current measurement
- Combiner boxes and inverter DC inputs
- Battery charging and discharging currents
DC current measurement is essential. An AC-only clamp meter simply cannot perform these tasks.
With an AC/DC clamp meter, technicians can measure:
- DC current on the PV side
- AC current on the inverter output
- The full energy conversion chain using a single instrument
Variable Frequency Drives and Industrial Power Electronics
In industrial environments, many systems operate with non-sinusoidal waveforms, including:
- VFD-driven motors
- Switching power supplies
- Rectified DC bus systems
These distorted waveforms can cause large errors when measured with basic AC clamp meters.
True RMS AC/DC clamp meters maintain accuracy even under harmonic-rich conditions.
Systems That Combine AC and DC Circuits
In facilities such as:
- Data centers and UPS systems
- Telecom power systems
- Rail transit DC buses
- EV charging and automotive electronics
Technicians must routinely measure both DC and AC currents during inspection and maintenance.
An AC/DC clamp meter becomes the most practical “main meter” for these environments.
High Accuracy and Professional Requirements
AC/DC clamp meters are typically selected by users who require:
- Hall-effect DC current sensing
- True RMS measurement
- High safety categories (CAT III / CAT IV)
- Multi-function capability for complex diagnostics
They are well suited for engineers, PV installers, industrial electricians, and power system specialists.

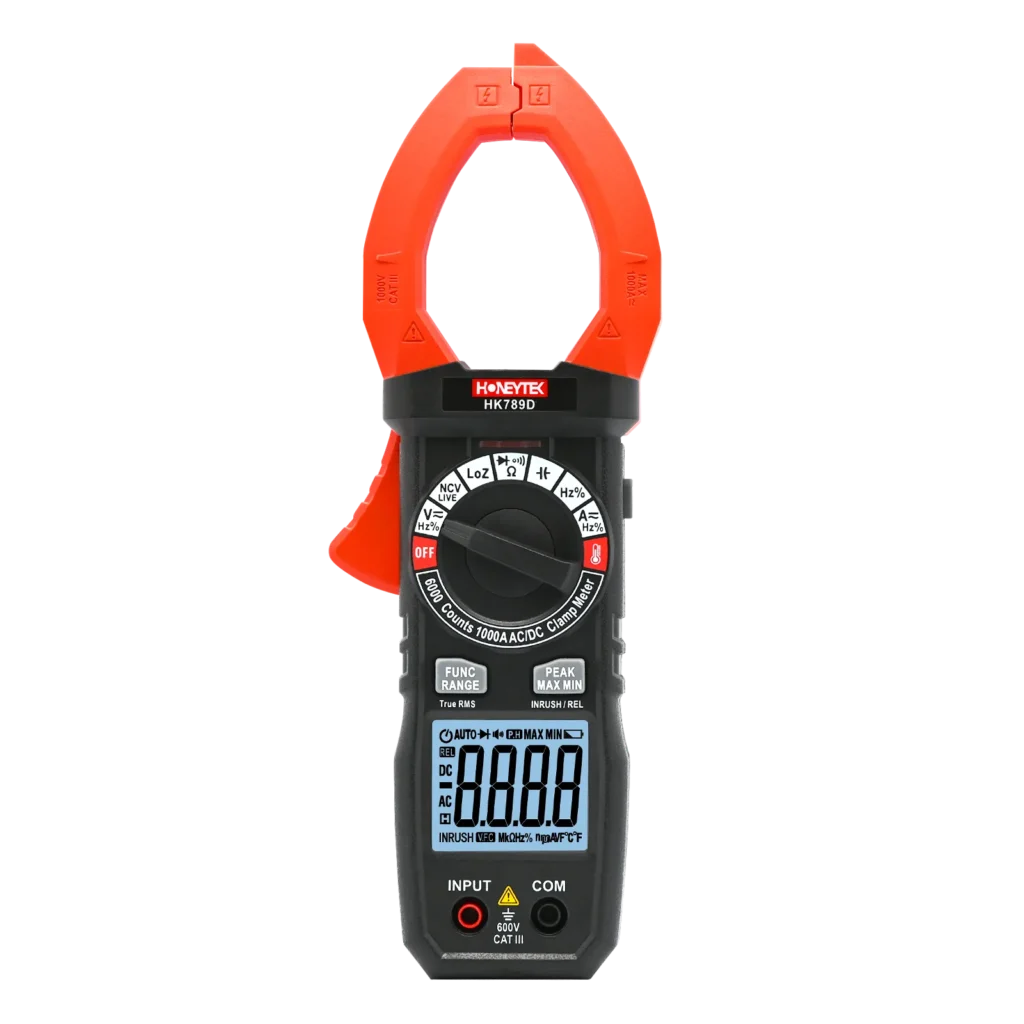

Recommended Model: Honeytek HK789D
The HK789D represents the AC+DC professional class:
- AC & DC current measurement up to 1000 A
- Hall-effect sensor for DC accuracy
- True RMS for distorted waveforms
- Designed for PV, EV, industrial, and hybrid systems
It is intended as a primary clamp meter for users working across both traditional and modern electrical environments.
Application Summary: Which One Should You Choose?
If your work focuses on:
- Traditional AC distribution
- Building electrical maintenance
- General industrial AC loads
→ An AC-only clamp meter such as HK789A is usually sufficient and more cost-effective.
If your work includes:
- Solar PV and energy storage
- Variable frequency drives
- UPS, EV, DC power systems
- Mixed AC/DC environments
→ An AC/DC True RMS clamp meter like HK789D is the better long-term investment.
About Honeytek
Honeytek is a specialized manufacturer of digital multimeters and clamp meters, focused on practical measurement solutions for electricians, technicians, and engineers worldwide. By offering both AC-optimized and AC/DC professional-grade models, Honeytek enables users to select the right tool based on real-world application needs—not unnecessary complexity.
